Installation Instructions
8400 Series

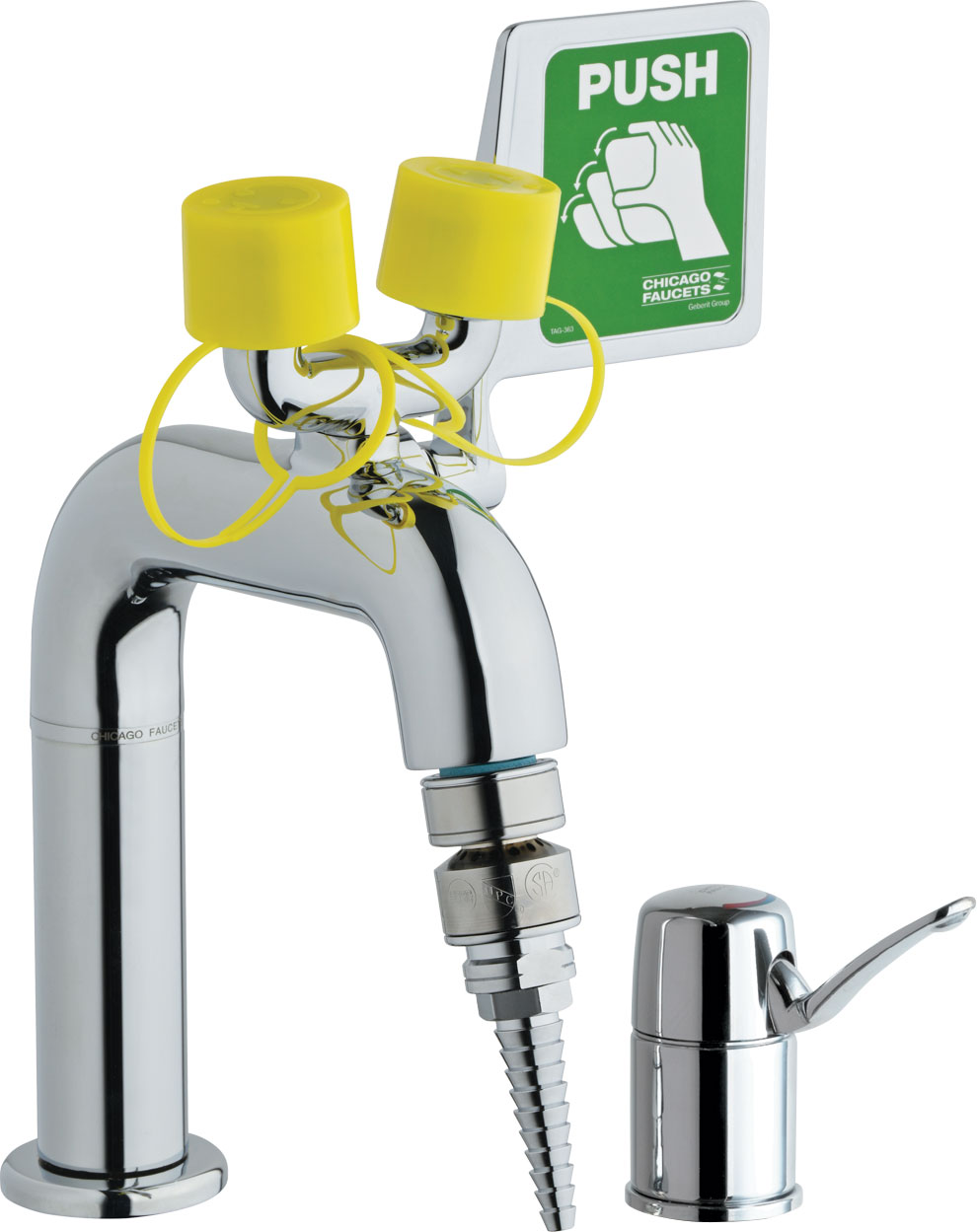

Single-handle emergency eyewash with faucet and lab nozzle
Specifications
Laboratory nozzle with 10 serrations for laboratory hose (E7TJKCP)
2-3/4" lever handle (2200-225KJKCP)
Ceramic operating cartridge with volume control and hot water limit stop (2300-XJKABNF)
Inline atmospheric vacuum breaker (E22JKCP)
Eyewash outlet: 3.3 GPM at 50 PSI
3/8" Compression inlet
Polished chrome
Weight
10.613 lb
Package Quantity
1
Availability
This item typically ships 5 days from order acknowledgement
Warranty
- Material 1 Year
1-Year Limited Material Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment
- ASME A112.18.1/CSA B125.1
NSF/ANSI 372 Drinking Water Systems Components-Lead Content
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
