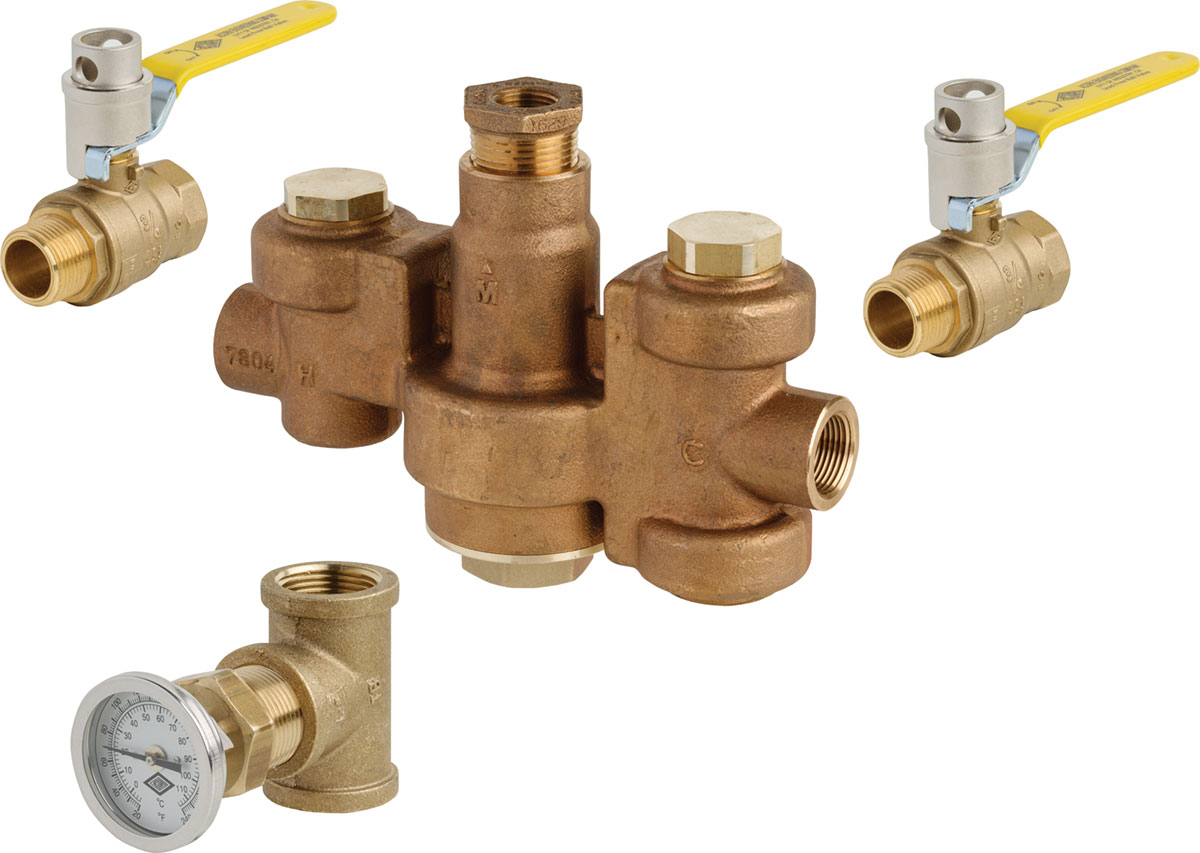

Emergency fixture thermostatic mixing valve with cold water bypass

Part Number
132-HFSTABNF
Price (USD)
$1200.00

Specifications

Weight
12.4 lb
Inlet
3/4" NPT inlet
Outlet
1" NPT outlet
Vandal Proof
No
Maximum operating pressure: 125 PSI
Outlet temperature range: 60°F-95°F (15°C-35°C)
Maximum hot water supply temperature: 180°F (82°C)
Flow Rate: 1.0 – 35.1 GPM @ 30 PSID

Availability

CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
Codes / Standards
  • ASSE 1071 Temperature Actuated Mixing Valves for Plumbed Emergency Equipment as certified by IAPMO

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
