Installation Instructions
8400 Series

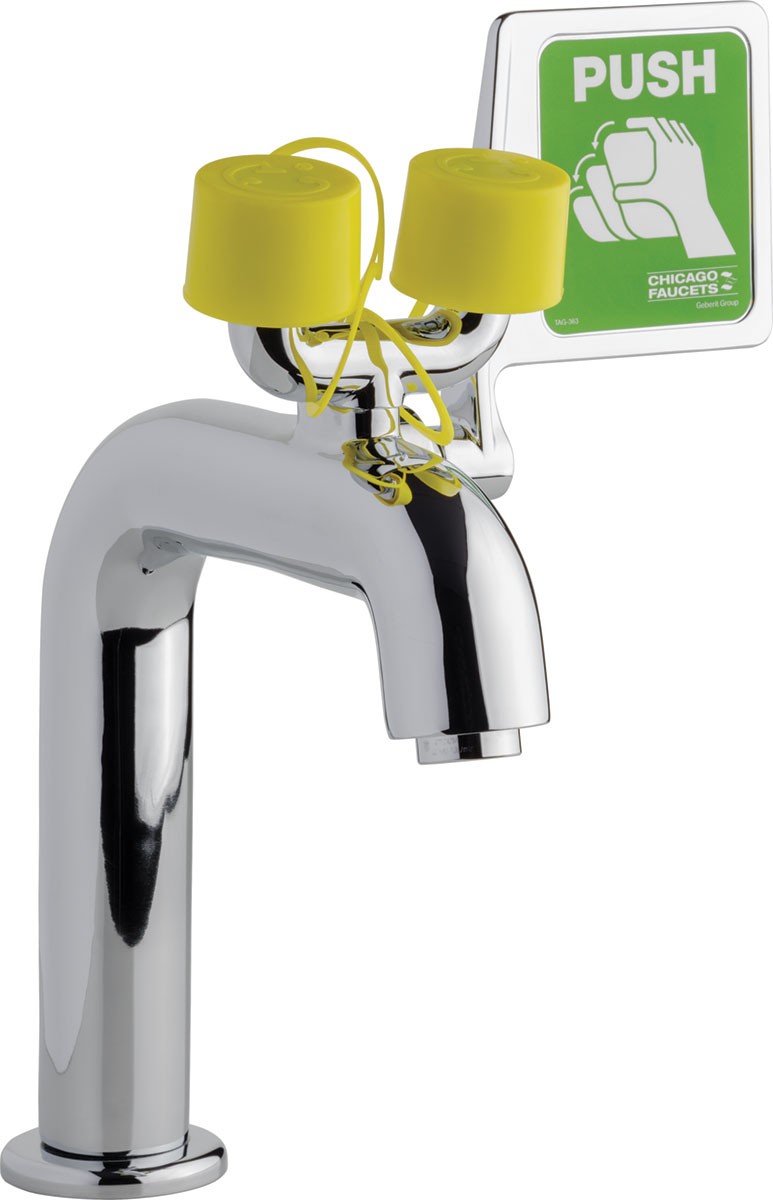

Retrofit emergency eyewash with faucet, ASSE 1071 valve, gauge, and locking ball valves
Specifications
Pressure compensating laminar flow non-aerating outlet 1.0 GPM (E64VPJKABCP)
132-LFSTABNF thermostatic mixing valve with cold water bypass
Eyewash outlet: 3.3 GPM at 50 PSI
3/8" Compression inlet
Polished chrome
Weight
13.05 lb
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Material 1 Year
1-Year Limited Material Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment
ASSE 1071 Temperature Actuated Mixing Valves for Plumbed Emergency Equipment
-
- ASME A112.18.1/CSA B125.1
NSF/ANSI 372 Drinking Water Systems Components-Lead Content
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certified to WaterSense by ICC-ES
