Installation Instructions
3511-8 Series

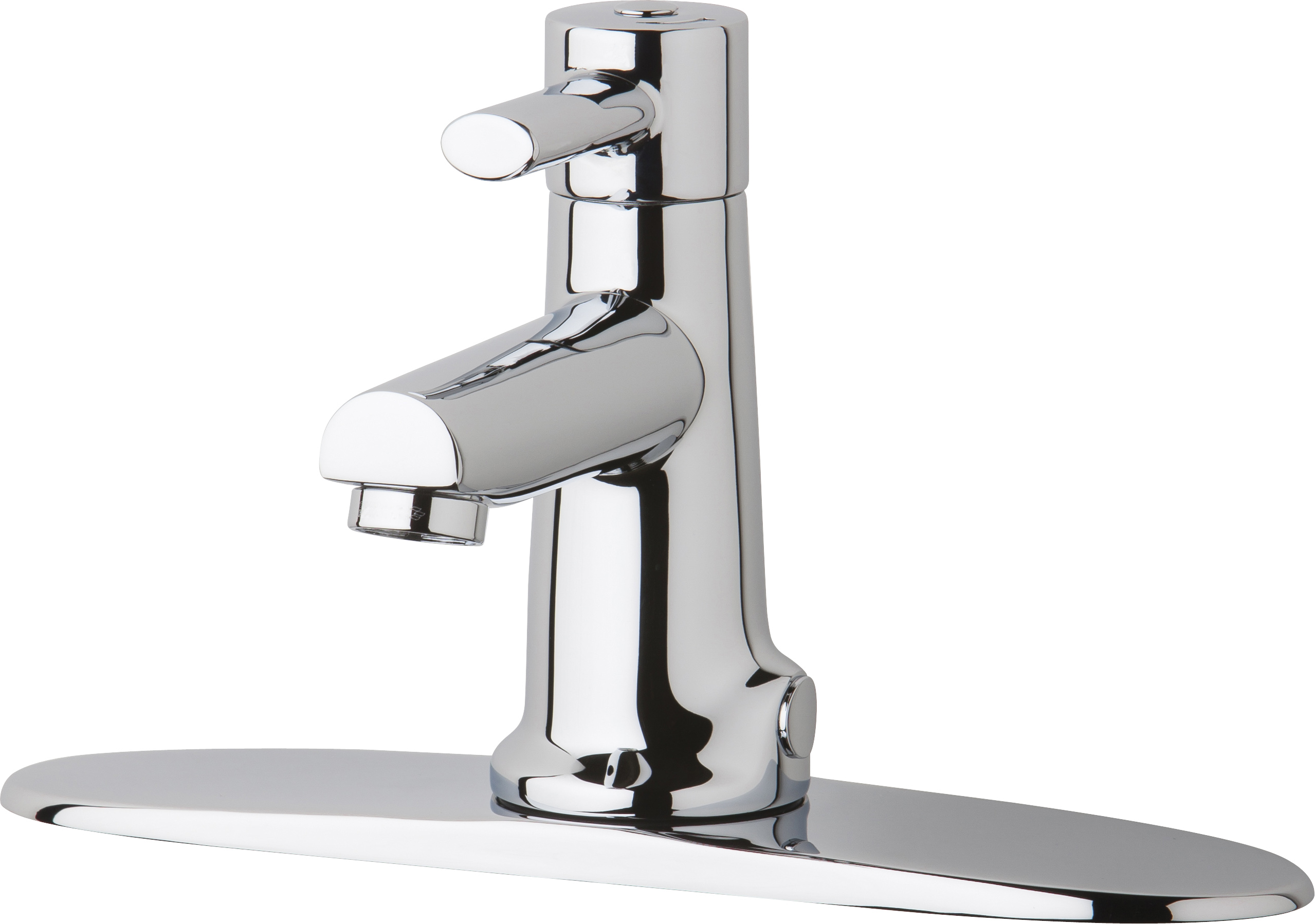

Deck-mounted manual faucet with 8" centers
Specifications
Pressure compensating Econo-Flo™ non-aerating laminar spray, 0.5 GPM (E2805JKABCP)
2-1/2" Lever handle kit for 3510 Series (3500-015JKCP)
Ceramic 1/4-turn operating cartridge, left-hand (377-XKLHJKABNF)
Concealed internal temperature control mixer with hot water adjustment limit stop
8" fixed centers
Includes 8" cover plate kit
Dual supply for hot and cold water service; flexible supply hoses included
Polished chrome
Weight
5.325 lb
Package Dimensions
12 × 10 × 4 in
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Training & Support
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
ADA ANSI/ICC A117.1
NSF/ANSI/CAN 372 Low Lead Content
NSF/ANSI/CAN 61: Q ≤ 1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Select component options from the menus below to find your fitting
Reset
New Product Page
Need to modify this faucet to suit your needs?
Our faucet configurator tool lets you build a custom faucet from the ground up using components from across the Chicago Faucets line.
