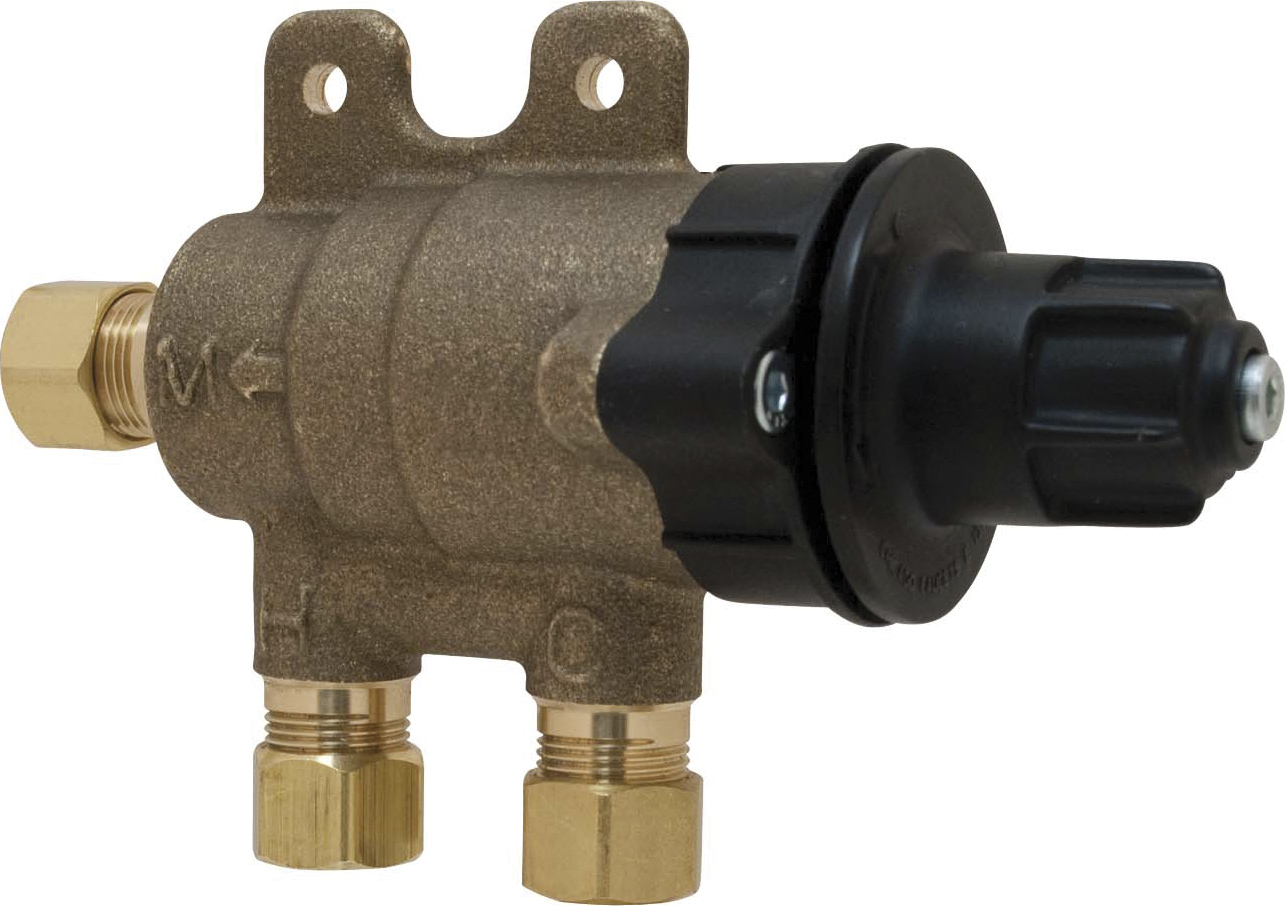

ECAST® thermostatic mixing valve for single or multiple faucet installations

131-ABNF

Specifications

Part Number
131-ABNF
Adjustment cap with locking feature
Brass body construction with corrosion-resistant internal components, includes plastic wall bracket
Weight
1.074 lb
Dimensions
4.63 × 4.63 × 4 in
Chicago Faucets No. 131-ABNF, ECAST® Thermostatic Mixing Valve. Standard 3/8 compression inlets and outlet. Integral inlet check valves to protect against cross-flow. Adjustment cap with locking feature. Brass body construction. Corrosion resistant internal components. Thermostatic wax element design. Thermostat controls both hot and cold water. Installs between the stop valves and the faucet. Single use or multiple faucet installations. Minimum supply pressure: 30psi (207 kPa); Hot inlet temperature: 100°F-180°F (38°C-82°). Outlet water temperature will be less than hot water inlet temperature. Includes wall bracket. Minimum flow rate: 0.35 gpm (@ min. 20 psi). Maximum flow rate: 4.6 gpm (@ min. 125 psi). Temperature out: 80°F to 120°F (27°C to 49°C). ECAST® construction with less than 0.25% lead content by weighted average.
Vandal Proof
No
Standard 3/8" compression inlets and outlet
Integral inlet check valves to protect against cross-flow
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Price (USD)
$153.80
