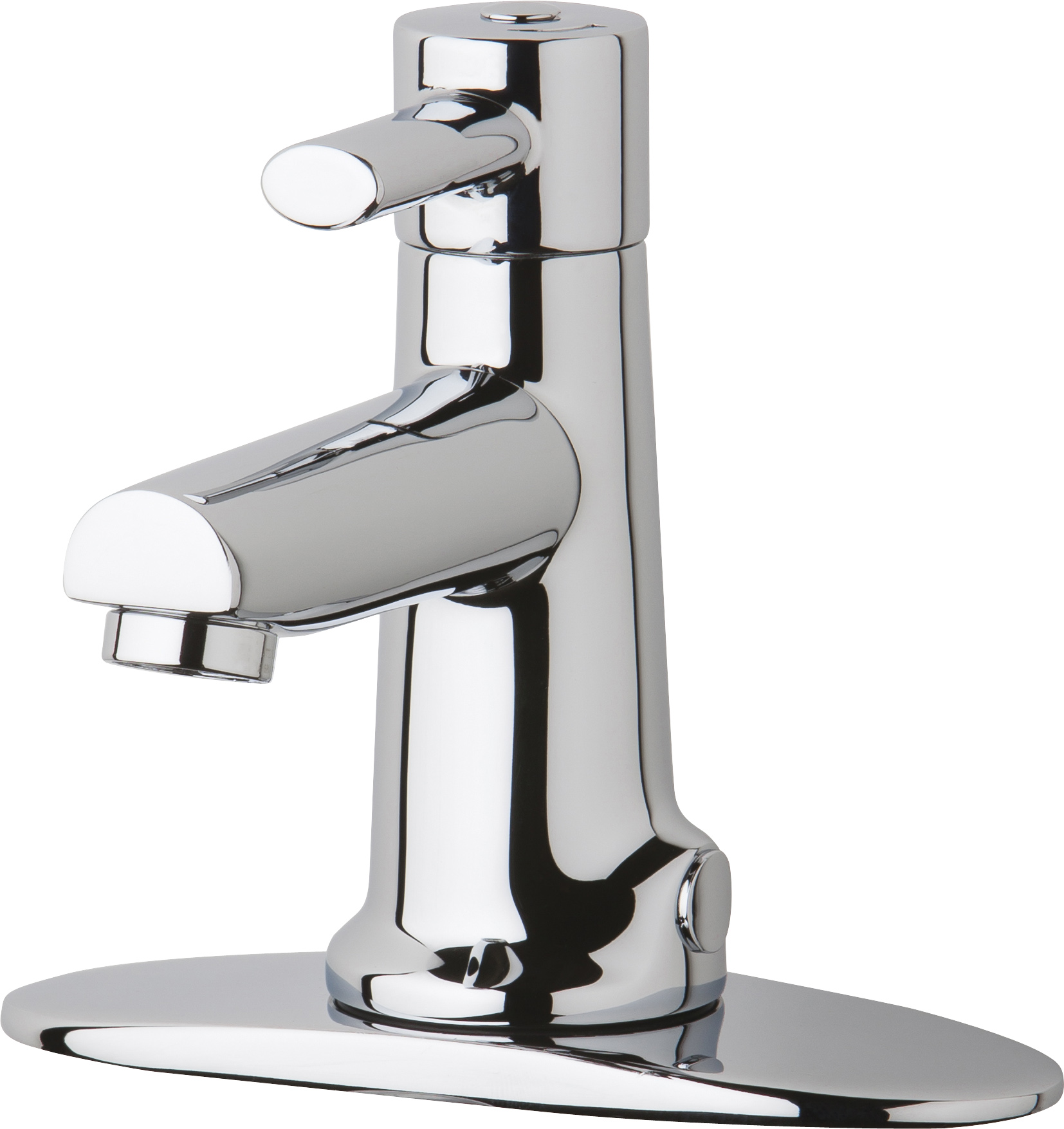

3511-4 Series

Deck-mounted manual faucet with 4" centers

Specifications

Pressure compensating Econo-Flo™ non-aerating laminar spray 0.5 GPM (E2805JKABCP)
2-1/2" lever handle kit for 3510 Series (3500-015JKCP)
Ceramic 1/4-turn operating cartridge, left-hand (377-XKLHJKABNF)
Concealed internal temperature control mixer with hot water adjustment limit stop
4" fixed centers
Includes 4" cover plate kit
Dual supply for hot and cold water service; flexible supply hoses included
Polished chrome
Weight
4.4 lb
Package Dimensions
11.25 × 9.25 × 3.25 in

Availability

This item ships 5 business days from order acknowledgement
Warranty
  • Cartridge 5 Year

    5-Year Limited Cartridge Warranty

  • Faucet Life

    Lifetime Limited Faucet Warranty

  • Finish 1 Year

    1-Year Limited Finish Warranty

Codes / Standards
  • ASME A112.18.1/CSA B125.1

  • ADA ANSI/ICC A117.1

  • NSF/ANSI/CAN 372 Low Lead Content

  • NSF/ANSI/CAN 61: Q ≤ 1

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
