HyTronic® for Patient Care Series

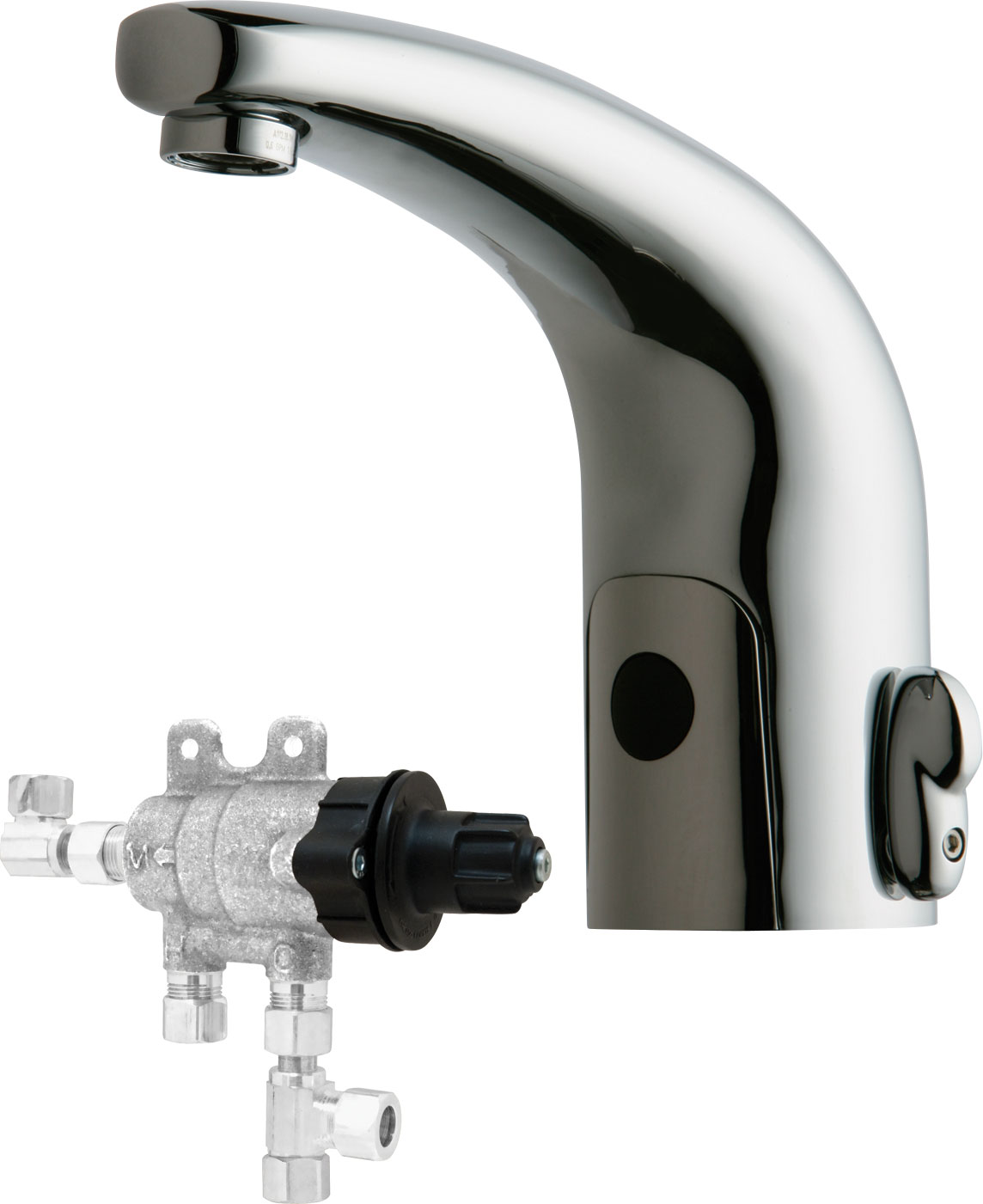

Touch-free, programmable faucet with mixing valve, for Patient Care applications

Specifications

HyTronic® Traditional spout with user temp control (240.723.AB.1)
Pressure compensating Softflo aerator 2.2 GPM (E12VPJKABCP)
User temperature control handle kit, rounded (240.746.AB.1)
HyTronic® module kit with Bluetooth® communication (242.433.00.1T)
Thermostatic mixing valve for single or multiple faucet installations (131-CABRCF)
Standalone EBPS conversion kit for touchless faucets with Bluetooth® communication (EBPS-001JKNF)
User adjustable temperature control mixer included
Single-hole (4" and 8" deck plates available, see Accessories)
Internal Antenna Specifications: Peak Gain of the antenna: ─5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
Integrated Emergency Backup Power System (EBPS) protects against power outages; 12 volt AC transformer required (order separately)
Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
Dual supply for hot and cold water; 3/8" O.D. copper supply tubes included
Polished chrome
Weight
7.968 lb

Availability

This item ships 5 business days from order acknowledgement
Warranty
  • Electronics 3 Year

    3-Year Limited Electronics and Solenoid Warranty

  • Faucet Life

    Lifetime Limited Faucet Warranty

  • Finish 1 Year

    1-Year Limited Finish Warranty

  • Mechanical

    5-Year Limited Mechanical Warranty

Codes / Standards
  • ASME A112.18.1/CSA B125.1

  • ADA ANSI/ICC A117.1

  • NSF/ANSI/CAN 372 Low Lead Content

  • NSF/ANSI/CAN 61: Q ≤ 1

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
