3520 Series

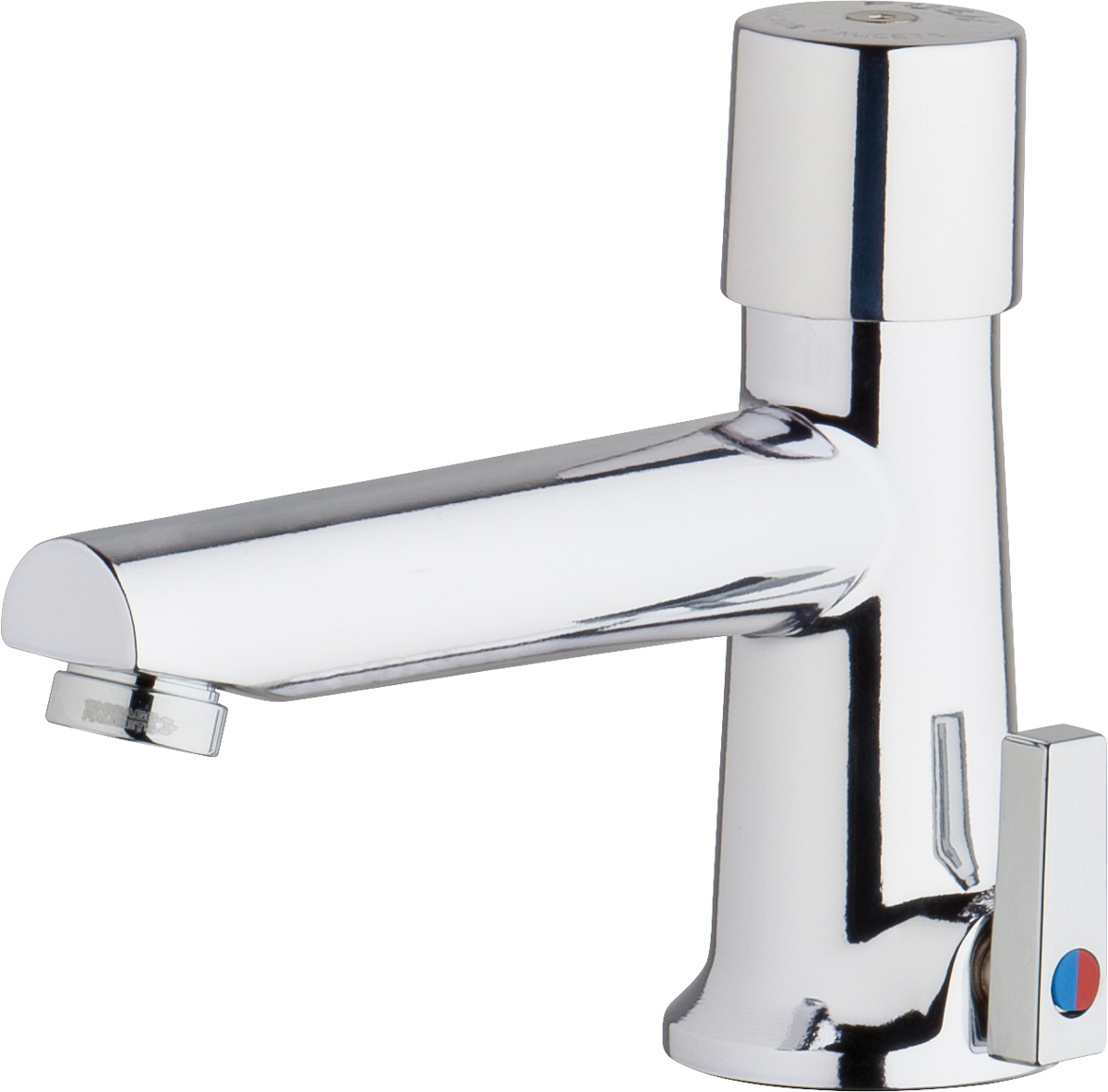

Deck-mounted metering faucet, single-hole mounting

3522-E2805ABCP
List Price
$363.00
Part Number
3522-E2805ABCP

Specifications

Pressure compensating Econo-Flo™ non-aerating laminar spray 0.5 GPM (E2805JKABCP)
1-5/8" MVP metering push handle (3500-004KJKCP)
Actuator Assembly (3300-103KJKABNF)
User adjustable temperature control mixer with hot water adjustment limit stop (up to 85% / 95% of available hot water)
Single hole
Dual supply for hot and cold water service, flexible supply hoses included
Polished chrome
Weight
4 lb
Package Dimensions
11.25 × 9.25 × 3.25 in

Availability

This item typically ships 5 business days from order acknowledgement
Warranty
  • Cartridge 5 Year

    5-Year Limited Cartridge Warranty

  • Faucet Life

    Lifetime Limited Faucet Warranty

  • Finish 1 Year

    1-Year Limited Finish Warranty

Codes / Standards
  • ASME A112.18.1/CSA B125.1

  • ADA ANSI/ICC A117.1

  • Complies with CALGreen requirements

  • NSF/ANSI 372 Low Lead Content

  • NSF/ANSI 61, Section 9

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
