Drawings:
Installation Instructions
50 Series

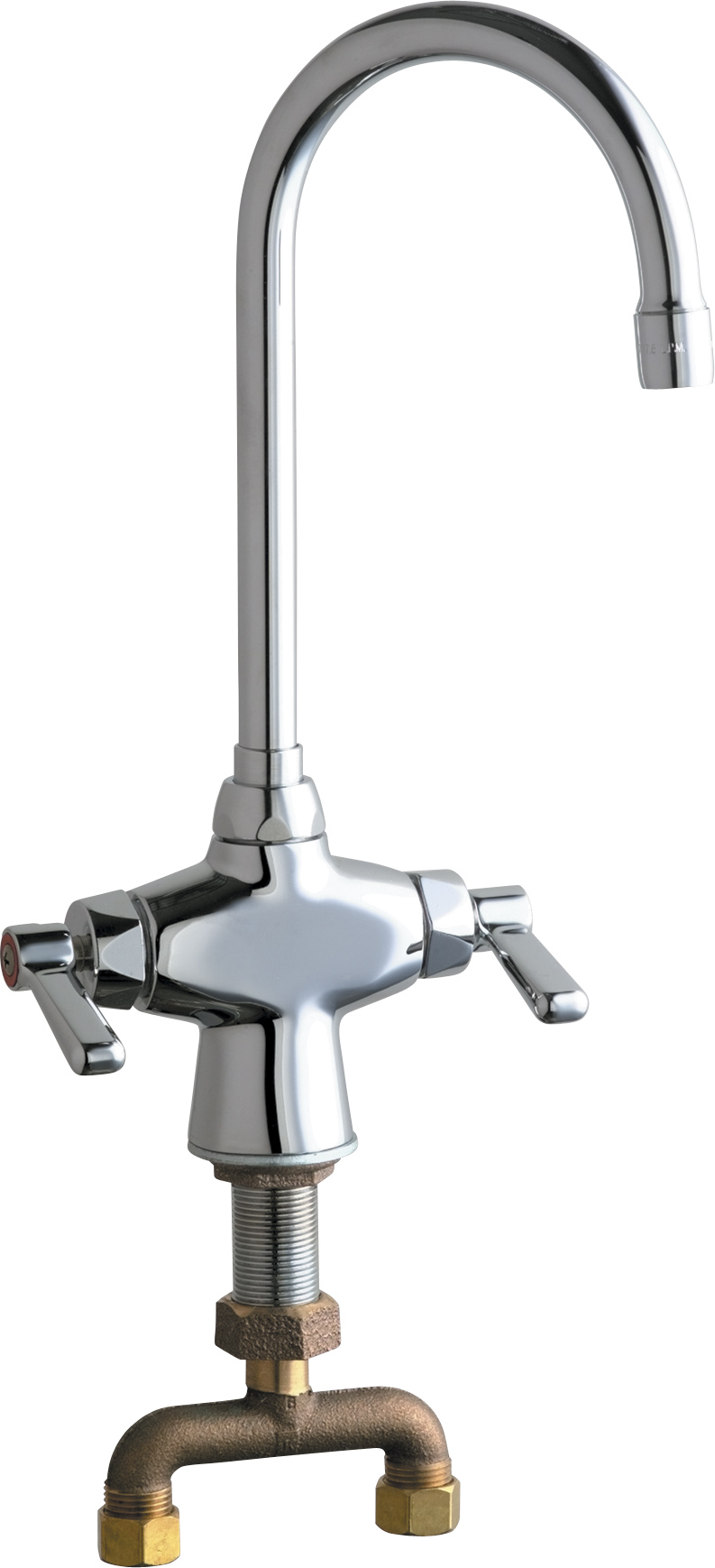

Deck-mounted manual faucet, single-hole mounting
Specifications
5-1/4" rigid/swing gooseneck spout (GN2AJKABCP)
Pressure compensating Softflo aerator 1.5 GPM (E35JKABCP)
2-3/8" lever handle (369-PRJKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
Single hole
Handles include color-coded index
Polished chrome
Weight
5.482 lb
Package Dimensions
15.88 × 10.25 × 2.62 in
Package Quantity
1
Availability
This item typically ships 5 business days from order acknowledgement
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ASME A112.18.1/CSA B125.1
Complies with CALGreen requirements
NSF/ANSI 372 Low Lead Content
-
NSF/ANSI 61, Section 9
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certified to WaterSense by ICC-ES
Select component options from the menus below to find your fitting
Reset
Specific Product Page
Need to modify this faucet to suit your needs?
Our faucet configurator tool lets you build a custom faucet from the ground up using components from across the Chicago Faucets line.
