523 Series

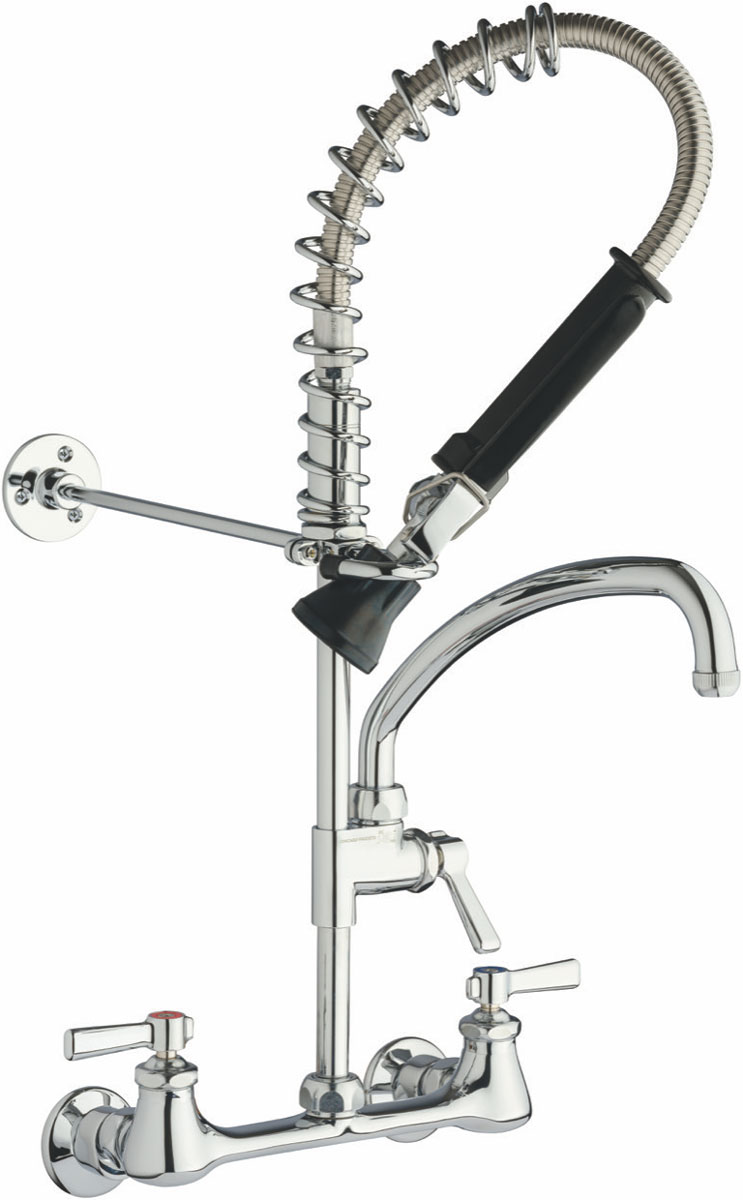

Mini pre-rinse fitting with 8" adjustable centers
Specifications
9-1/2" L-type swing spout (L9LEOJKAB)
Quixtop outlet with single screen design, full flow (female) (E1JKABRCF)
2-3/8" lever handle (369-PRJKCP)
2-3/8" lever handle (369-JKCP)
Ceramic 1/4-turn operating cartridge with integrated check valve, right-hand (1-099XKCJKABNF)
Ceramic 1/4-turn operating cartridge with integrated check valve, left-hand (1-100XKCJKABNF)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
3/8" offset inlet supply arm (GJKABCP)
Water conserving pre-rinse spray valve 1.0 GPM (90-LABCP)
Adapta-Faucet™ integrated faucet for pre-rinse fittings (613-AABCP)
23" stainless steel hose and handle assembly (83-23ABNF)
2-5/16" diameter slip flange (1-055JKCP)
6-7/8" Mini pre-rinse riser (686-024JKABCP)
8" body, adjustable arms 7-1/4" - 8-3/4" centers
Pipe strap and hook assembly; handle with red, blue, and white index
Polished chrome
Weight
14 lb
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
- ASTM F2324
NSF/ANSI 372 Low Lead Content
-
NSF/ANSI/CAN 61: Q ≤ 1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
