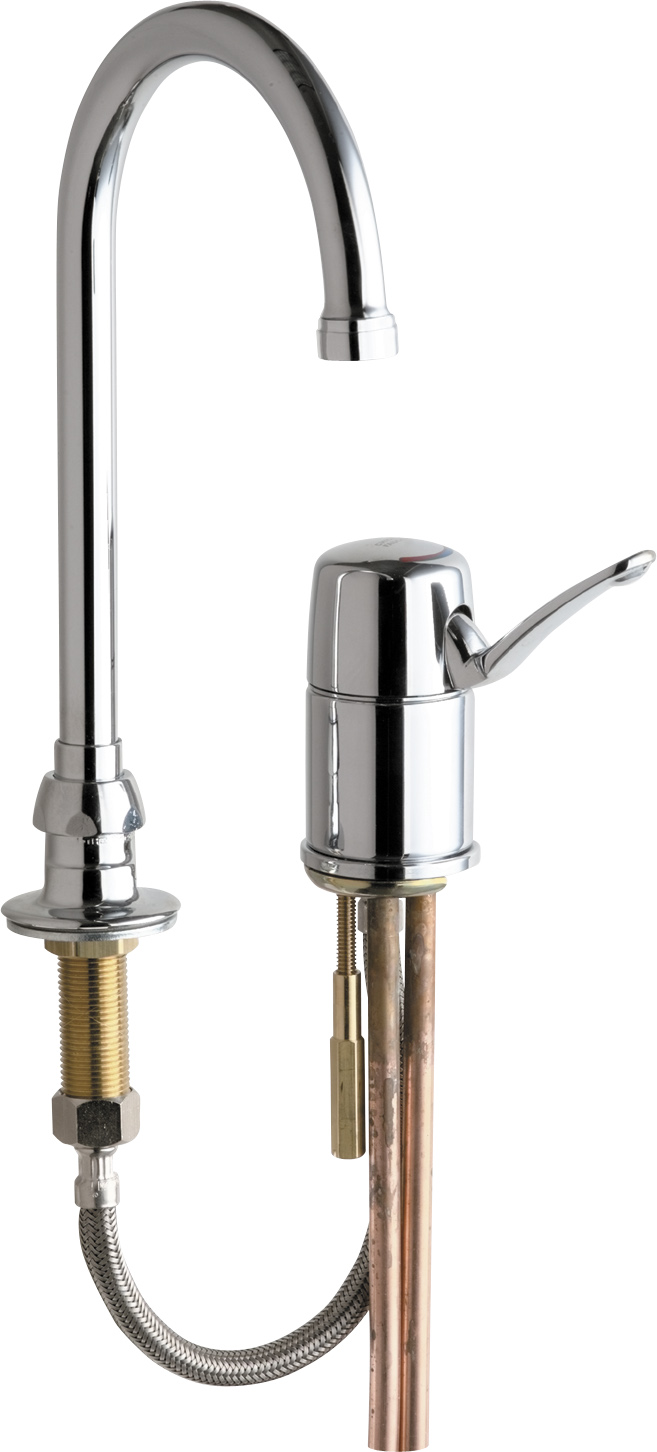

Deck-mounted manual sink faucet, single-hole mounting with optional 8" cover plate

Part Number
2302-E2805-5CP

Discontinued
Replaced By

Specifications

5-1/4" rigid/swing gooseneck spout (GN2AJKCP)
Pressure compensating Econo-Flo™ outlet with adapter (E2805-5JKCP)
2-3/4" lever handle (2200-225KJKCP)
Ceramic operating cartridge with volume control and hot water limit stop (2300-XJKABNF)
Single hole with side valve
3/8" O.D. copper supply tube inlets
Polished chrome
Warranty
Codes / Standards
  • ADA ANSI/ICC A117.1

  • ASME A112.18.1/CSA B125.1

  •

  • NSF/ANSI 61, Section 9

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
