Installation Instructions
2201-4 Series

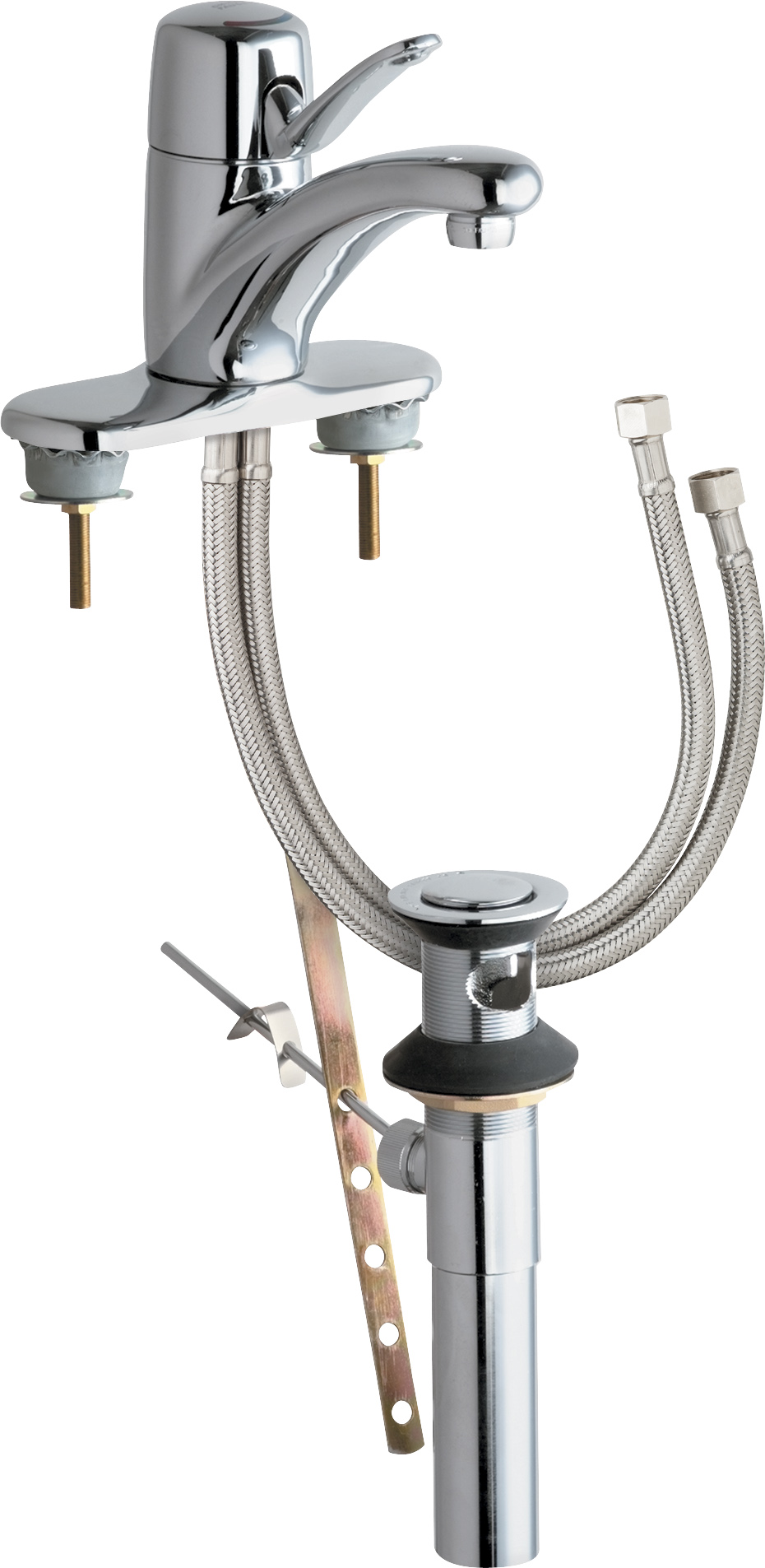

Deck-mounted manual faucet, 4" centers, with pop-up drain
Specifications
Pressure compensating Softflo aerator 2.2 GPM (E12JKABCP)
2-3/4" lever handle (2200-225KJKCP)
Ceramic operating cartridge with volume control and hot water limit stop (2300-XJKABNF)
4" fixed centers
Includes 2-1/8" diameter pop-up drain
3/8" compression flexible supply hoses
Polished chrome
Weight
6 lb
Package Dimensions
11.25 × 9.25 × 3.25 in
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
ADA ANSI/ICC A117.1
NOTE: Per the California Energy Commission (CEC), this fitting is not intended to be sold in California. See the CEC website for details.
NSF/ANSI/CAN 372 Low Lead Content
-
NSF/ANSI/CAN 61: Q ≤ 1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Select component options from the menus below to find your fitting
Reset
New Product Page
Need to modify this faucet to suit your needs?
Our faucet configurator tool lets you build a custom faucet from the ground up using components from across the Chicago Faucets line.
