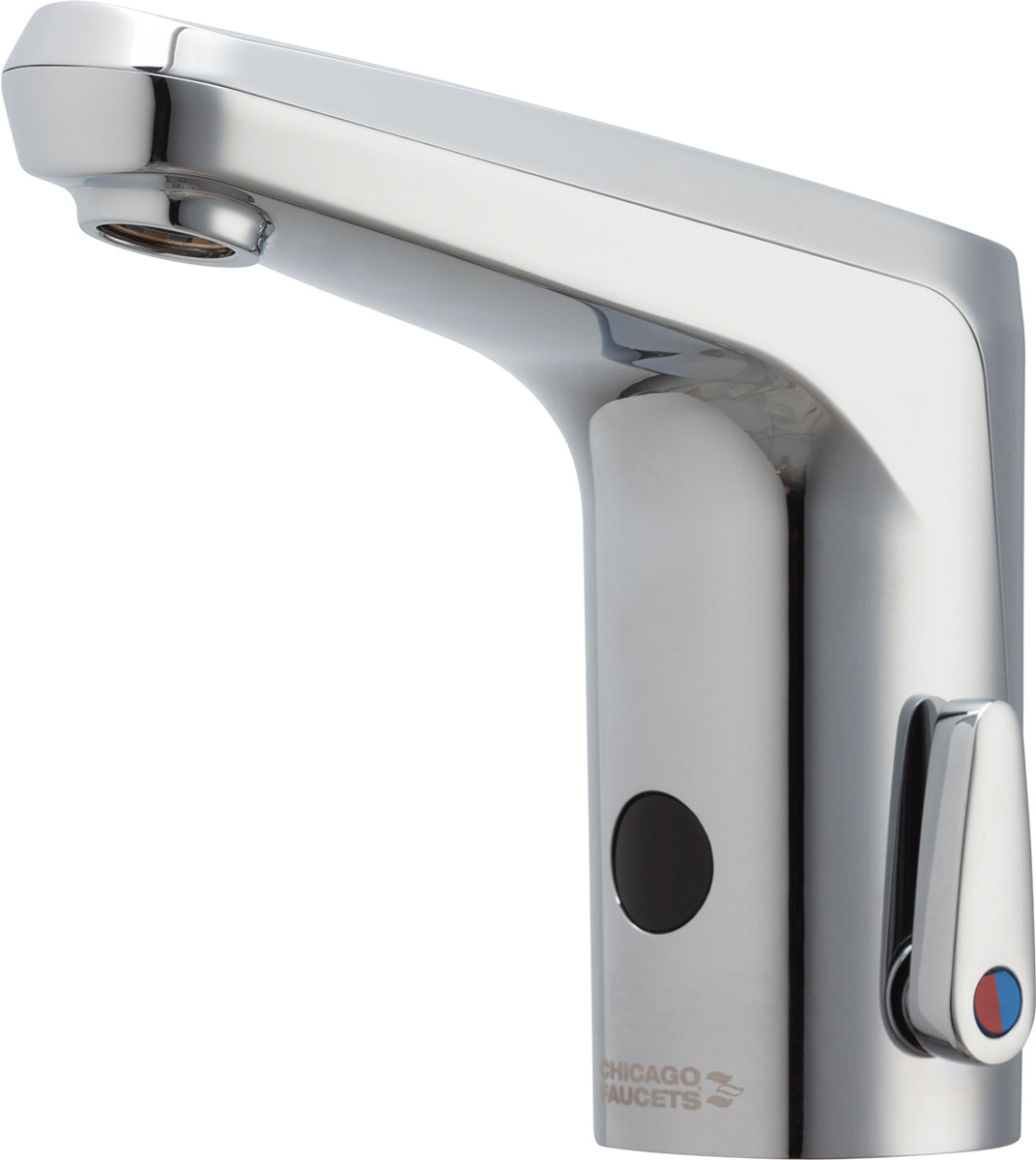

E-Tronic® 80 Series

Advanced electronic commercial faucet with touchless sensor operation and ASSE 1070 scald protection

Easy install, monitoring, and thermostatic scald protection in a commercial sensor faucet

Specifications

Pressure compensating laminar flow outlet 0.5 GPM (244.168.00.1)
Module for E-Tronic® 80 with Bluetooth® communication (244.458.00.1T)
Includes optional user-adjustable temperature control.
Single-hole
Includes built-in ASSE 1070 thermostatic mixing valve (US Patent No. 11,697,929).
10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
Includes Long Term Power System (LTPS) - DC
Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
Internal Antenna Specifications: Peak Gain of the antenna: ─1.7dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC02
Dual supply with patented ASSE 1070 thermostatic mixing valve; flexible supply hoses included
Polished chrome
Weight
4.529 lb

Availability

CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
  • Electronics 3 Year

    3-Year Limited Electronics and Solenoid Warranty

  • Faucet Life

    Lifetime Limited Faucet Warranty

  • Finish 1 Year

    1-Year Limited Finish Warranty

  • Mechanical

    5-Year Limited Mechanical Warranty

Codes / Standards
  • ASME A112.18.1/CSA B125.1

  • ADA ANSI/ICC A117.1

  • Certified per ASSE 1070 / ASME A112.1070 / CSA B125.70

  • NSF/ANSI/CAN 61: Q ≤ 1

  • NSF/ANSI/CAN 372 Low Lead Content

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
