Installation Instructions
1000 Series
Angle stop
Specifications

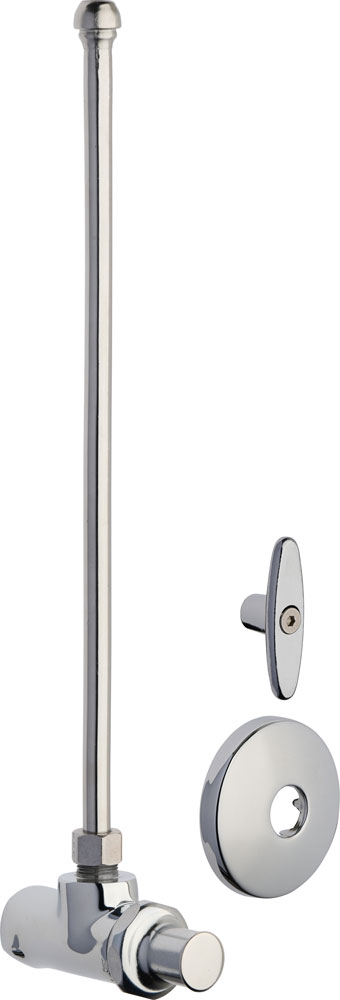

Angle stop
2-1/4" tee handle (293-006JKRCF)
Slow compression cartridge, integral check (376-CXJKABNF)
Compression valve
1/2" NPT female thread inlet
Includes slip wall flange
3/8" O.D. female compression outlet
12" bullnose flexible supply riser, loose key handle
Polished chrome
Weight
1.986 lb
Package Dimensions
11.88 × 6.56 × 4.12 in
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI/CAN 372 Low Lead Content
-
NSF/ANSI/CAN 61: Q ≤ 0.5
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
