Installation Instructions
745 Series

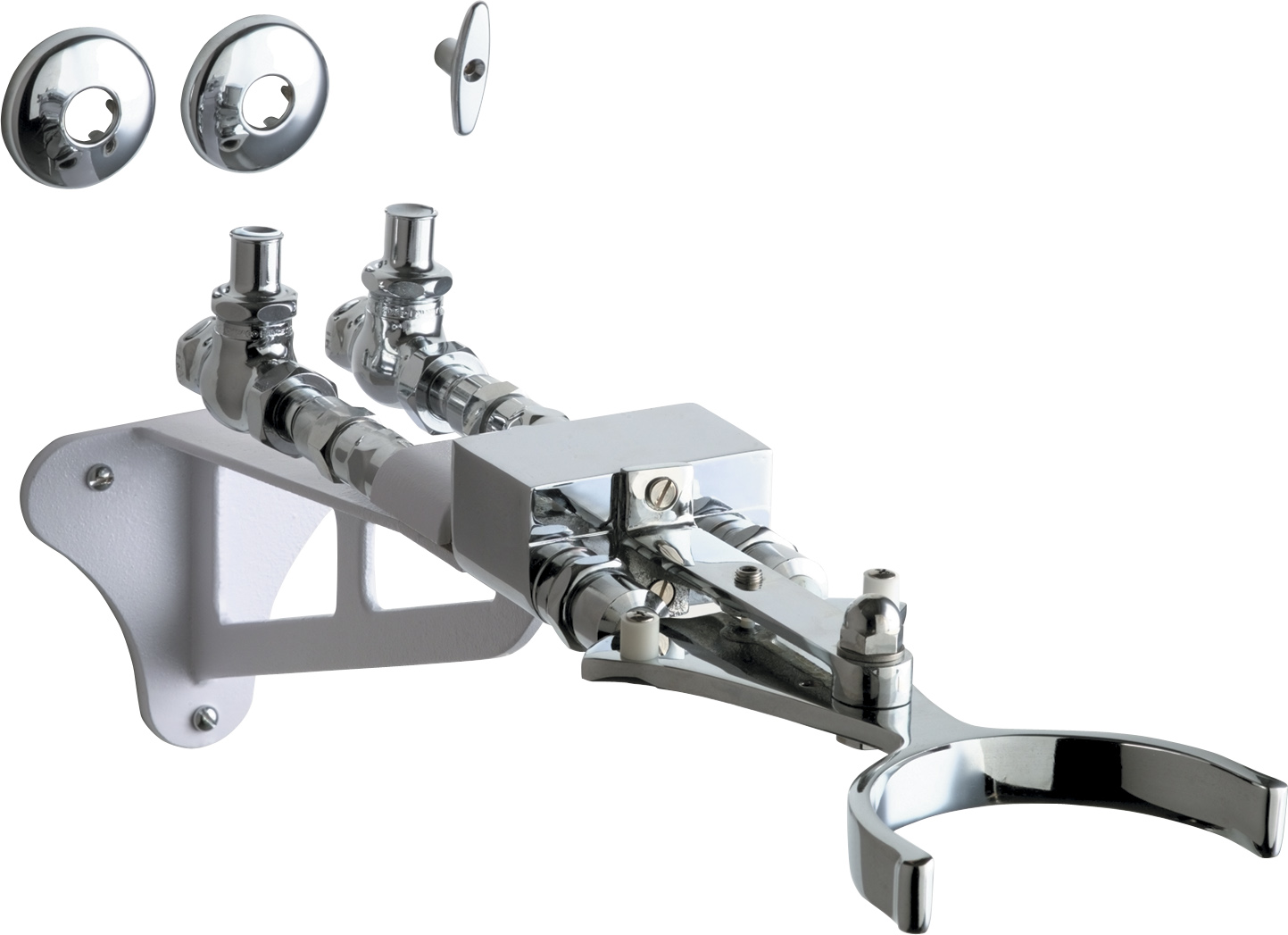

Knee operated remote valve
Specifications
Knee/foot operated valve
Cam type knee valve cartridge with fast cycle time closure (745-XJKABNF)
Slow compression operating cartridge, left-hand (217-XTLHJKABNF)
Two 1/2" NPT female thread inlets
3/8" NPT female thread outlet
Polished chrome
Weight
12.1 lb
Package Dimensions
15.25 × 7.25 × 8.75 in
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI/CAN 372 Low Lead Content
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
