Spouts

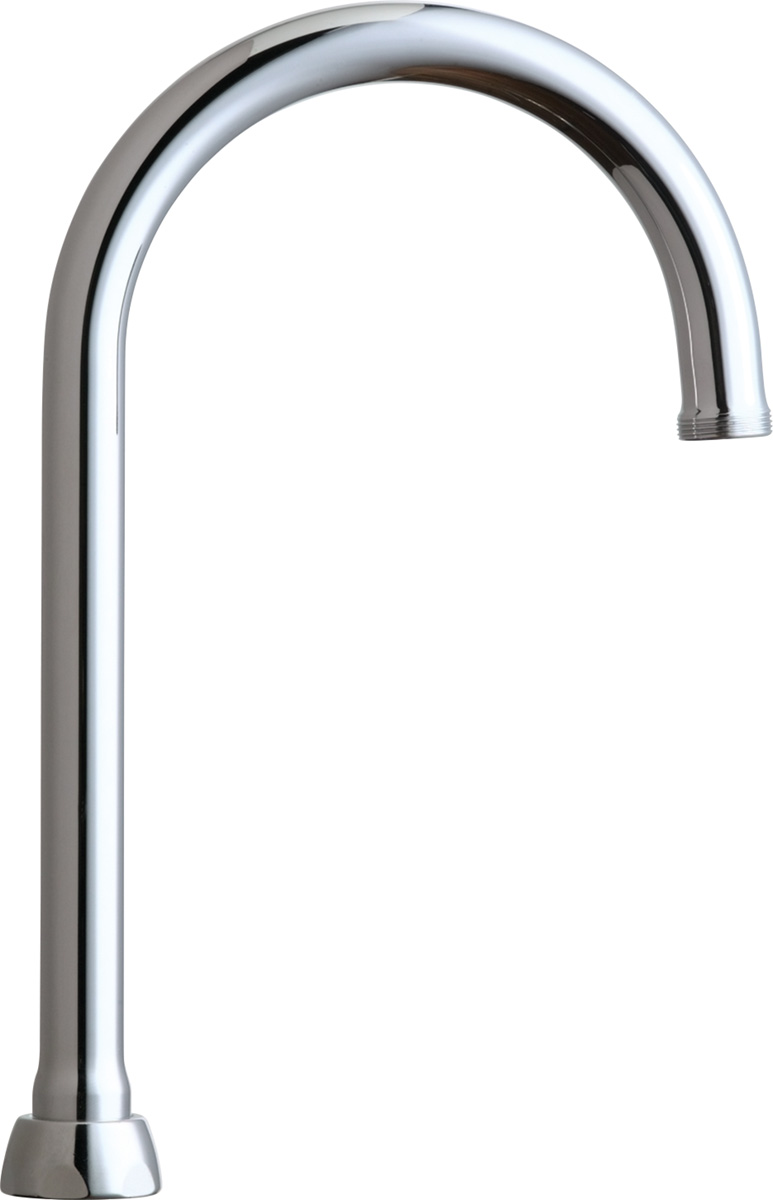

5-1/4" Rigid/swing gooseneck spout
Specifications
5-1/4" fixed centers
Inlet
Laminar flow control device in spout inlet
1-1/16"-18 female thread inlet
13/16"-24 male thread outlet
Fixed or 360-degree swing
1.5 GPM (5.7 L/min) max.
Weight
0.566 lb
Package Dimensions
12 × 9 × 2 in
Package Quantity
1
Overall Height
9-3/4"
Height to Outlet
6-1/8"
Availability
This item ships 5 business days from order acknowledgement
Codes / Standards
NSF/ANSI/CAN 372 Low Lead Content
