Mixing Valves

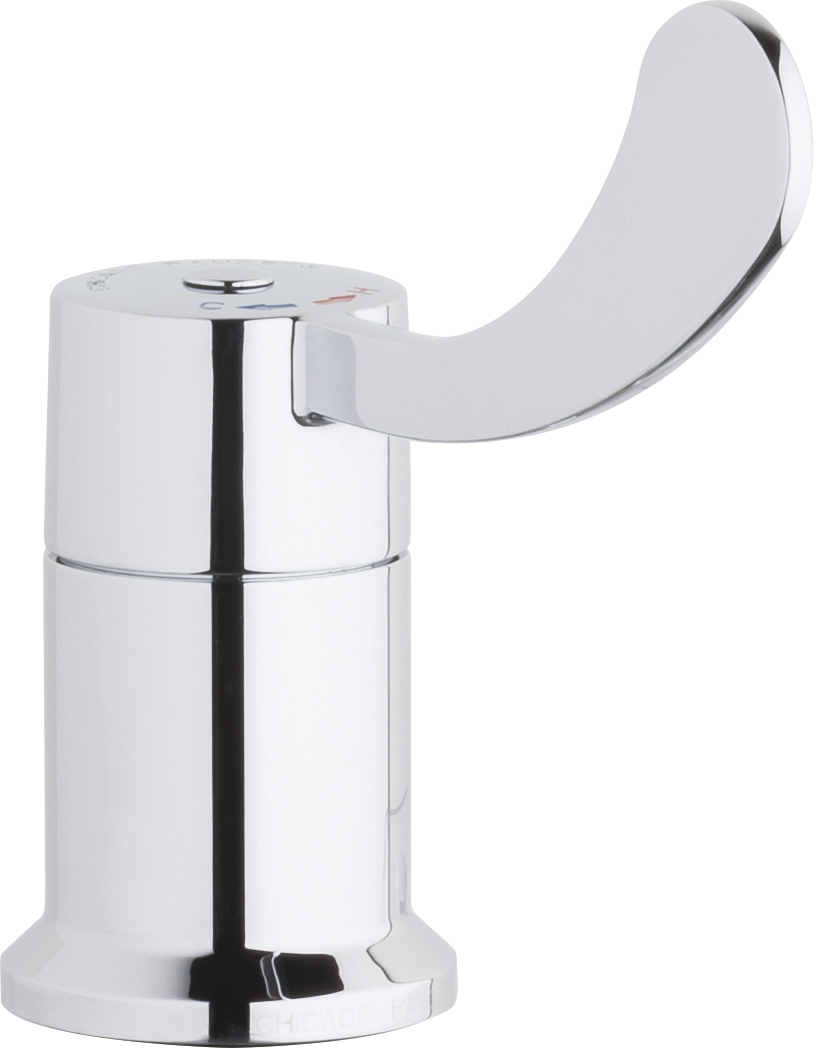

Deck-mounted ADA and HCAI-compliant mechanical mixing valve with user temperature control
Specifications
ADA and HCAI-compliant 4" blade handle with hot/cold index for single-hole, single-supply HyTronic installations
Cast brass valve body, stainless steel supply hoses
*Note: 180°F max. during temporary high-temperature system flush
Includes inlet check valves, mounting hardware
Polished chrome
Weight
2.89 lb
Package Dimensions
11.25 × 9.25 × 3.25 in
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Finish
1-Year Limited Finish Warranty
- Mechanical
5-Year Limited Mechanical Warranty
Codes / Standards
ADA ANSI/ICC A117.1
NSF/ANSI/CAN 372 Low Lead Content
NSF/ANSI/CAN 61, Section 9
