Installation Instructions
515 Series

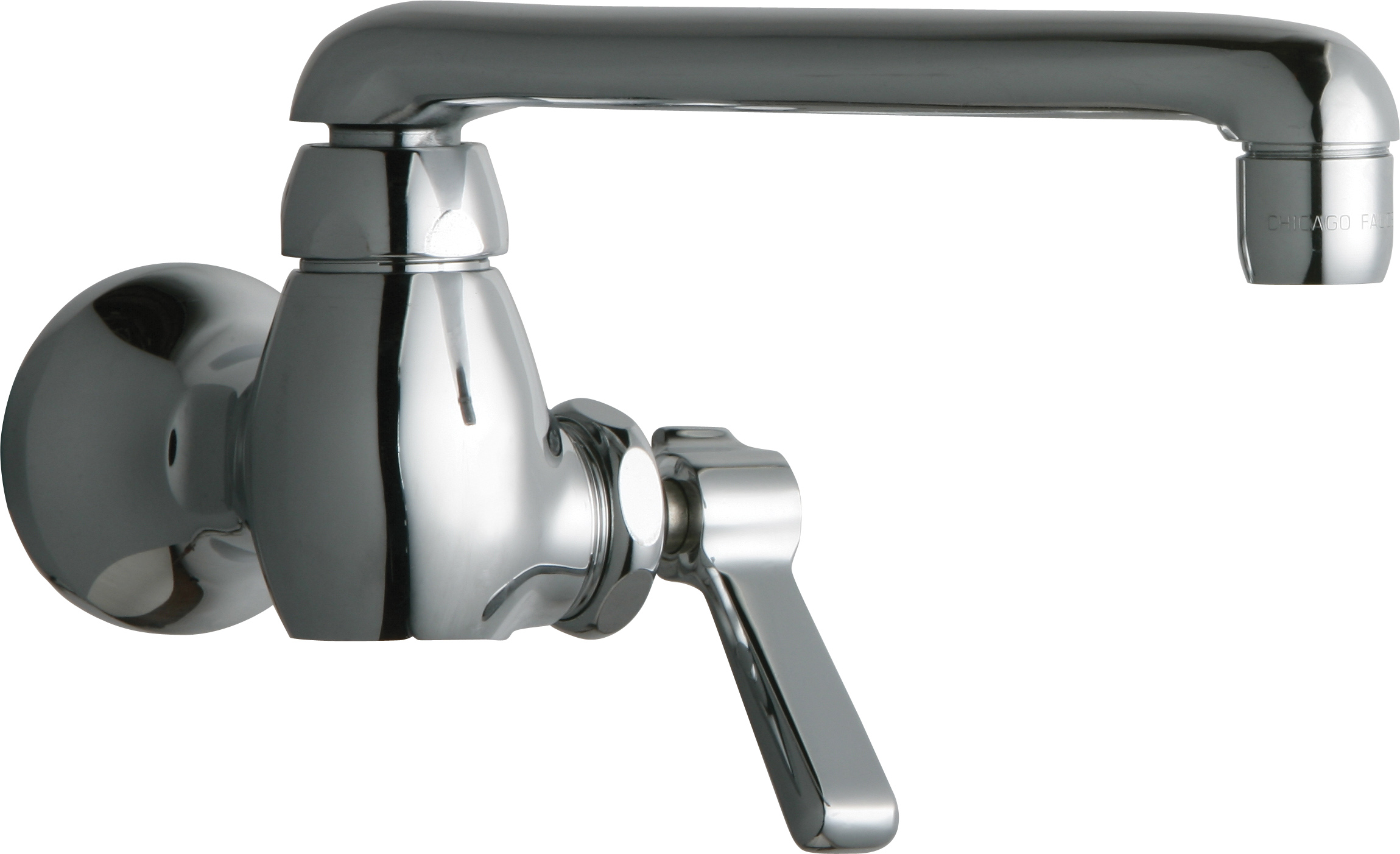

Single-hole wall-mounted pot and kettle filler
Specifications
6" S-type swing spout (S6LEOJKAB)
Pressure compensating Softflo aerator 1.5 GPM (E35JKABCP)
2-3/8" lever handle (369-JKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Single-hole
Handle includes red, blue, and white index
Polished chrome
Weight
2.5 lb
Package Dimensions
10.38 × 4.5 × 3.75 in
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ASME A112.18.1/CSA B125.1
Complies with CALGreen requirements
-
NSF/ANSI/CAN 61: Q ≤ 1
NSF/ANSI/CAN 372 Low Lead Content
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certified to WaterSense by ICC-ES
