Installation Instructions
515 Series

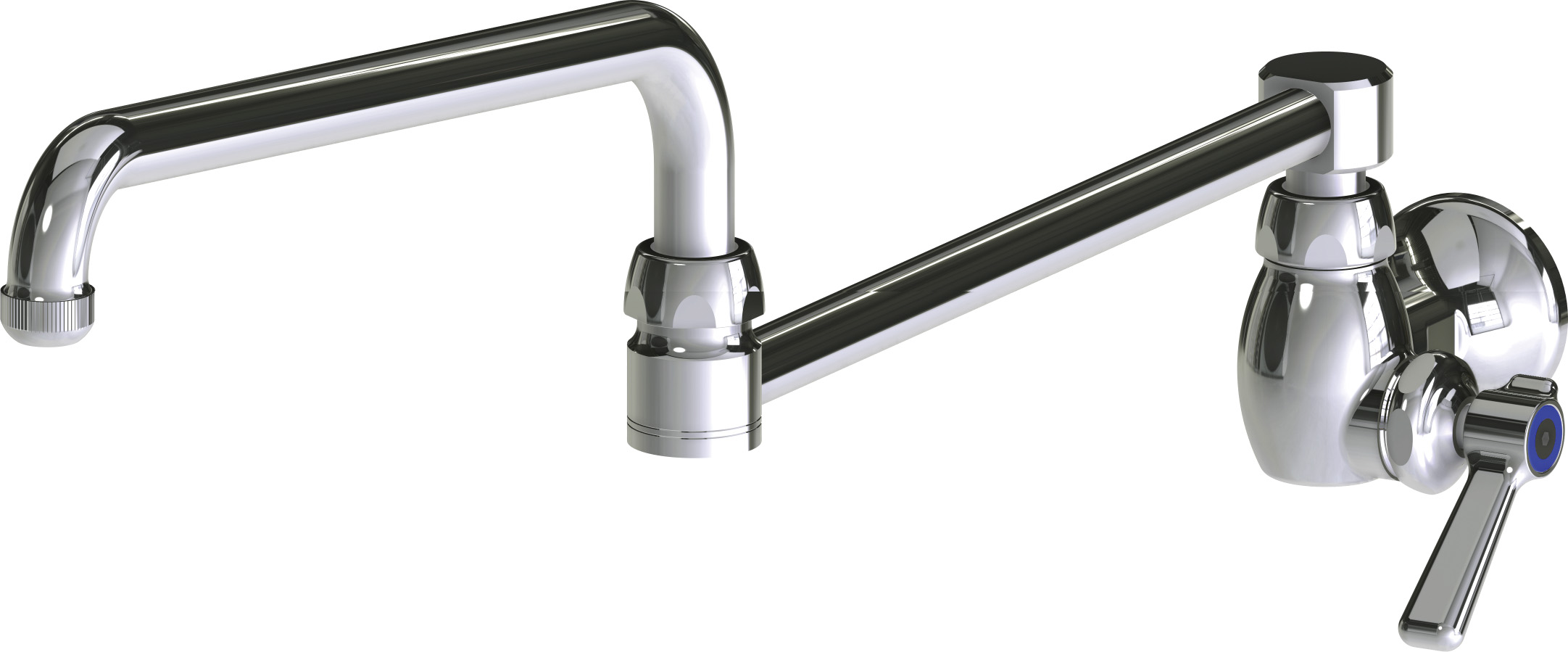

Single-hole wall-mounted pot and kettle filler
Specifications
24" double-jointed swing spout (DJ24LEOJKABCP)
Quixtop outlet with single screen design, full flow (female) (E1JKABRCF)
2-3/8" lever handle (369-JKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Single-hole
Handle includes red, blue, and white index
Polished chrome
Weight
3.65 lb
Package Dimensions
15.88 × 10.25 × 2.62 in
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ASME A112.18.1/CSA B125.1
NSF/ANSI/CAN 372 Low Lead Content
NSF/ANSI/CAN 61: Q ≤ 1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Need to modify this faucet to suit your needs?
Our faucet configurator tool lets you build a custom faucet from the ground up using components from across the Chicago Faucets line.
