Installation Instructions
535 Series
Washdown hose reel
Description

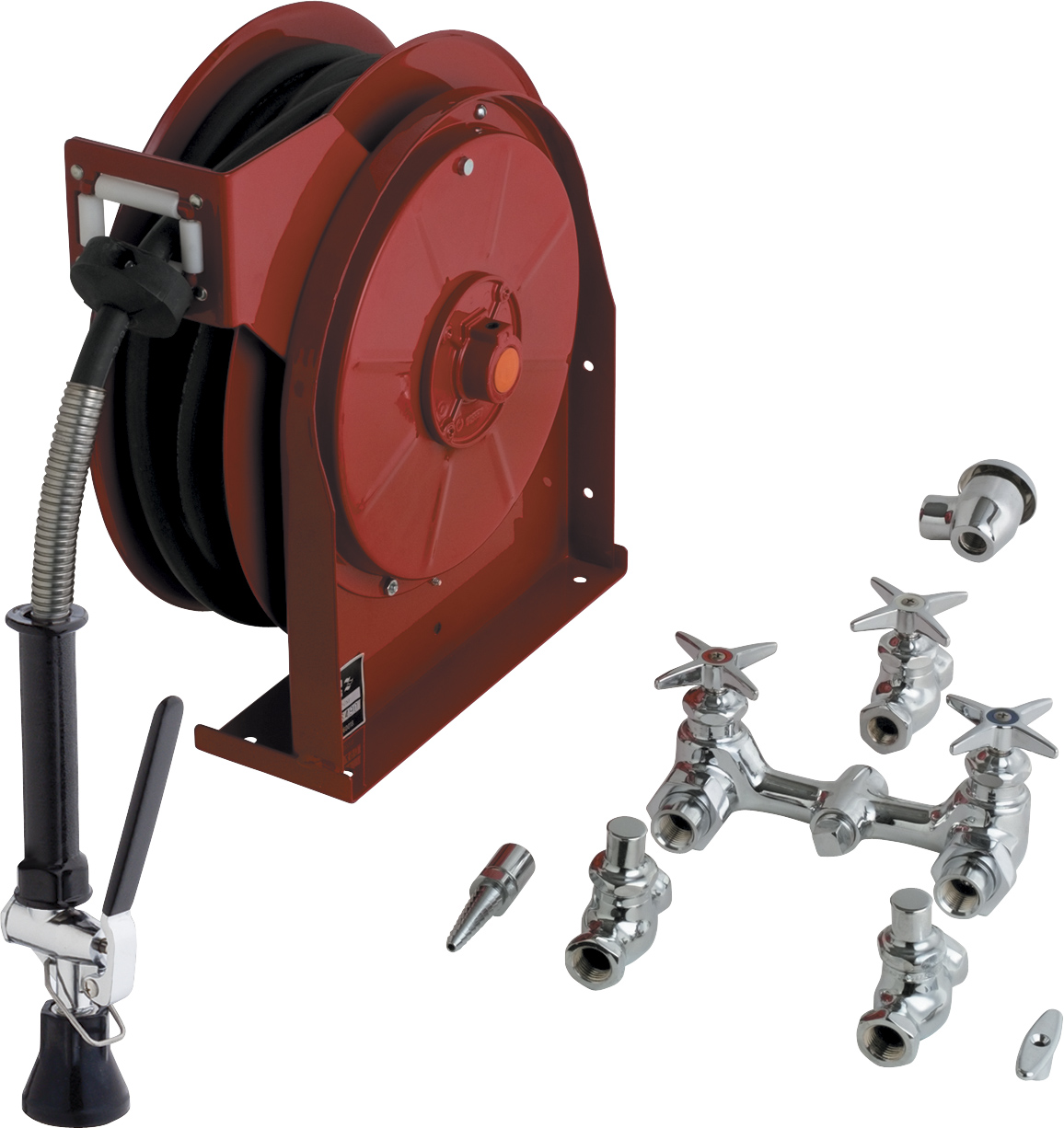

Hose Reel Assembly with Fitting
Specifications
Washdown hose reel with 6" exposed valve
Hose reel spray valve 2.5 GPM (90-HABCP)
3" cross handle (633-PRJKCP)
Slow compression operating cartridge, left-hand (217-XTLHJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
Slow compression cartridge, integral check (376-CXJKABNF)
1/2" NPT female thread inlets
Handles include color-coded index
Weight
35 lb
Package Dimensions
17.12 × 12.87 × 11.25 in
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
