Installation Instructions
SH Series

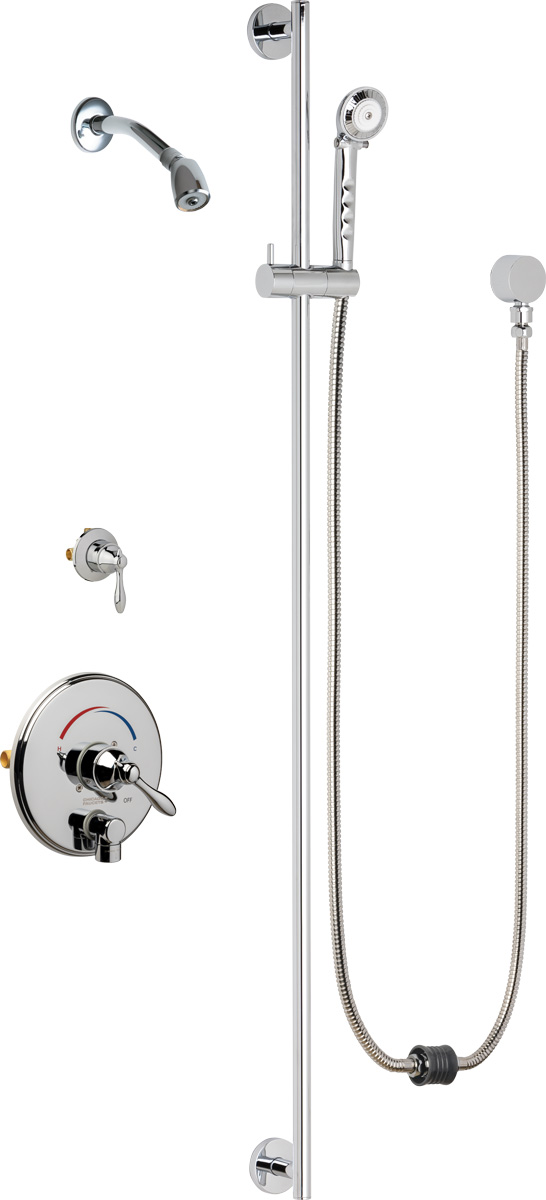

Thermostatic/pressure balancing shower fitting with Auto-Drain™ and hand spray
Specifications
Thermostatic/pressure balancing with Auto-Drain™
Thermostatic/pressure balancing cartridge (1920-XJKNF)
Auto-Drain™ diverter valve and trim (774-CP)
Showerhead with swivel ball joint, 2.5 GPM max. (620-CP)
Auto-Drain™ hose and hand spray, 2.5 GPM, with 48" slide bar (153-ADCP)
Wall Elbow (622-001CP)
48" wall-mounted slide bar with hand spray holder (9800-148CP)
1921-VONF thermostatic/pressure balancing tub and shower valve
2.5 GPM hand spray with pause control; two 34" stainless steel hoses with Auto-Drain™
Includes shower head arm and wall flange
Valve trim includes integrated Auto-Drain™
Integral service stops with checks to prevent cross flow
1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets
Polished chrome
Weight
12.945 lb
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Warranty
- Faucet 5 Year
5-Year Limited Faucet Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
- ASSE 1014
Complies with ASSE 1016/ASME A112.1016/CSA B125.16
NOTE: Per the California Energy Commission (CEC), this fitting is not intended to be sold in California. See the CEC website for details.
- ASME A112.18.1/CSA B125.1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
