SH Series

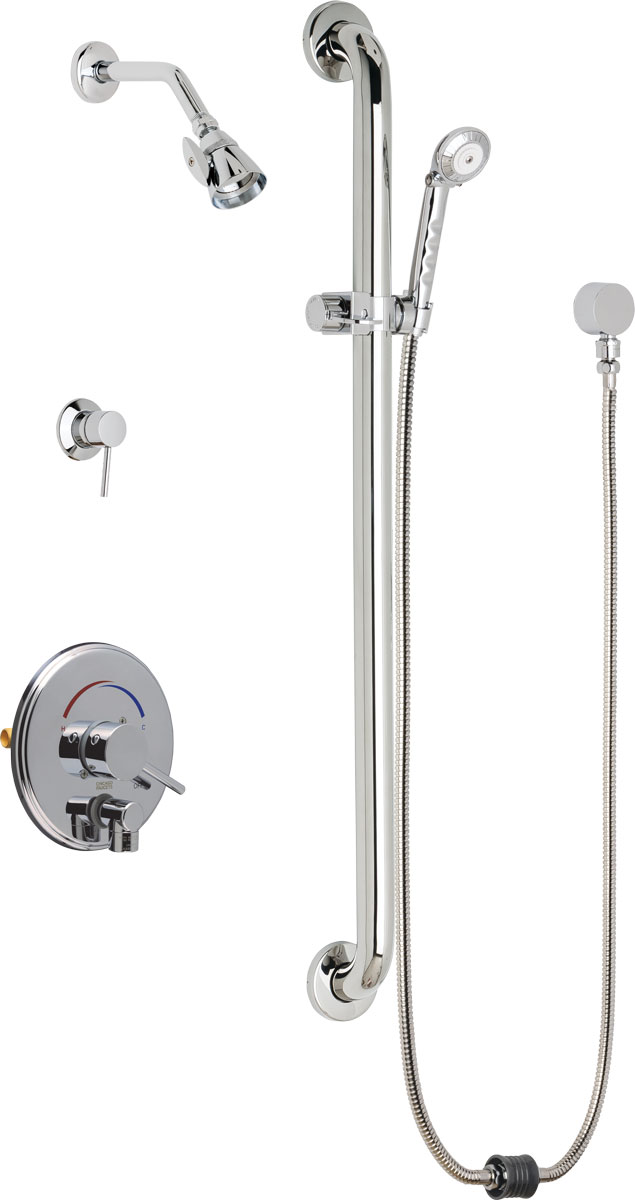

Pressure balancing shower fitting with Auto-Drain™
Specifications
Pressure balancing with Auto-Drain™
Pressure balancing valve cartridge (1910-XJKNF)
Showerhead with adjustable spray pattern, 2.5 GPM max. (622-CP)
1911 Series pressure balancing shower valve with Auto-Drain™ (1911-VONF)
Auto-Drain™ diverter valve and trim (773-CP)
Auto-Drain™ hose and hand spray, 2.5 GPM, with 36" ADA grab bar (154-ADCP)
Wall Elbow (622-001CP)
Includes shower head arm and wall flange
Valve trim includes integrated Auto-Drain™
Integral service stops with checks to prevent cross flow
1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets
Polished chrome
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Warranty
- Faucet 5 Year
5-Year Limited Faucet Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
Complies with ASSE 1016/ASME A112.1016/CSA B125.16
- ASME A112.18.1/CSA B125.1
