Installation Instructions

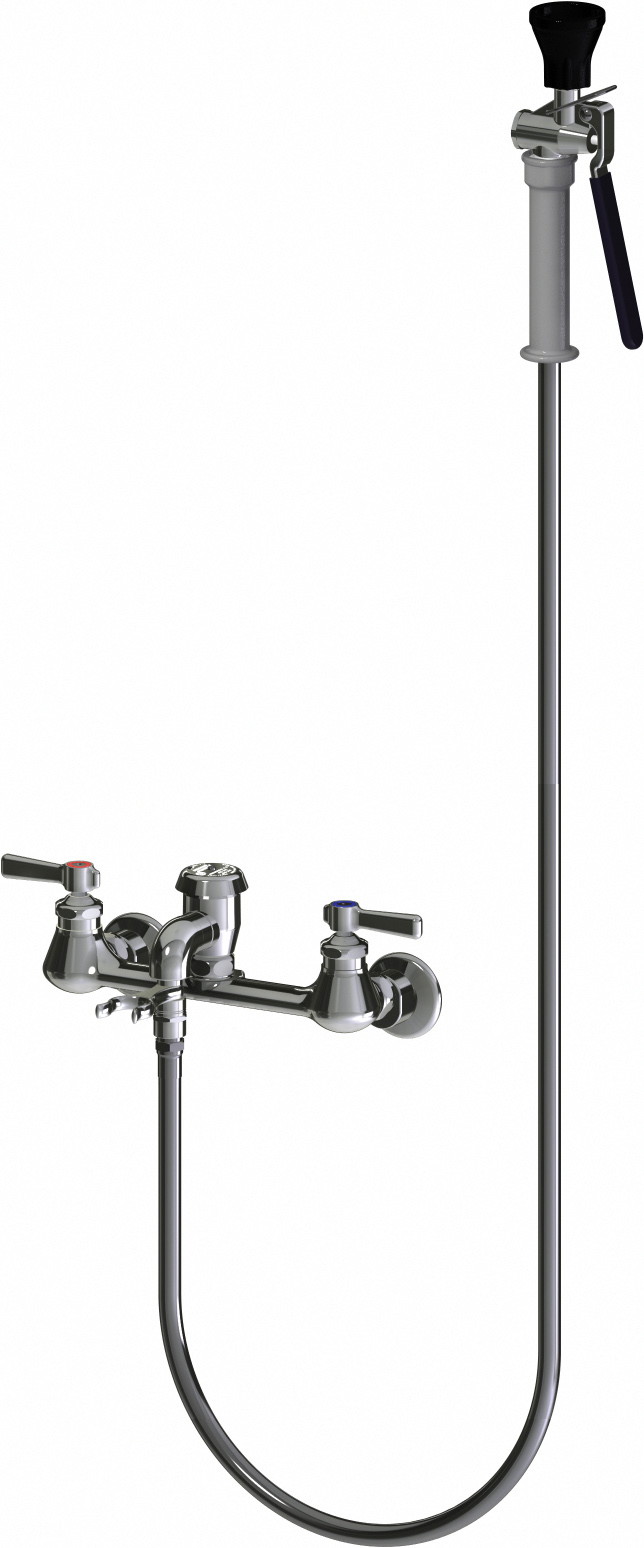

512 Series
Pre-rinse fitting with adjustable centers
Specifications
2-3/8" lever handle (369-PRJKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
3/8" offset inlet supply arm with integral check (GCJKABCP)
Water conserving pre-rinse spray valve 1.0 GPM (90-LABCP)
58" stainless steel hose and handle assembly (83-58ABNF)
2-5/16" diameter slip flange (1-055JKCP)
8" body, adjustable arms 7-1/4" - 8-3/4" centers
Handles include color-coded index
Polished chrome
Weight
10.235 lb
Package Dimensions
15.25 × 7.25 × 8.75 in
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet 5 Year
5-Year Limited Faucet Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
- ASTM F2324
-
NSF/ANSI 61, Section 9
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
