Installation Instructions
510 Series

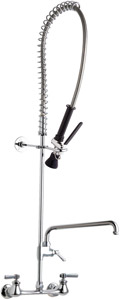

Pre-rinse fitting with 8" adjustable centers
Specifications
12" L-type swing spout (L12LEOJKAB)
Quixtop outlet with single screen design, full flow (female) (E1JKABRCF)
2-3/8" lever handle (369-PRJKCP)
2-3/8" lever handle (369-JKCP)
Ceramic 1/4-turn operating cartridge with integrated check valve, right-hand (1-099XKCJKABNF)
Ceramic 1/4-turn operating cartridge with integrated check valve, left-hand (1-100XKCJKABNF)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
3/8" offset inlet supply arm (GJKABCP)
Inline vacuum breaker with dual checks (E23JKABCP)
Water conserving pre-rinse spray valve 1.0 GPM (90-LABCP)
Adapta-Faucet (613-AL12E1ABCP)
44" stainless steel hose and handle assembly (83-44ABNF)
2-5/16" diameter slip flange (1-055JKCP)
23" Standard pre-rinse riser (919-039JKABCP)
8" body, adjustable arms 7-1/4" - 8-3/4" centers
Handles include color-coded index
Polished chrome
Weight
14.313 lb
Package Dimensions
3.19 × 5.62 × 25 in
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
- ASTM F2324
NSF/ANSI 372 Low Lead Content
-
NSF/ANSI/CAN 61: Q ≤ 1
