510 Series

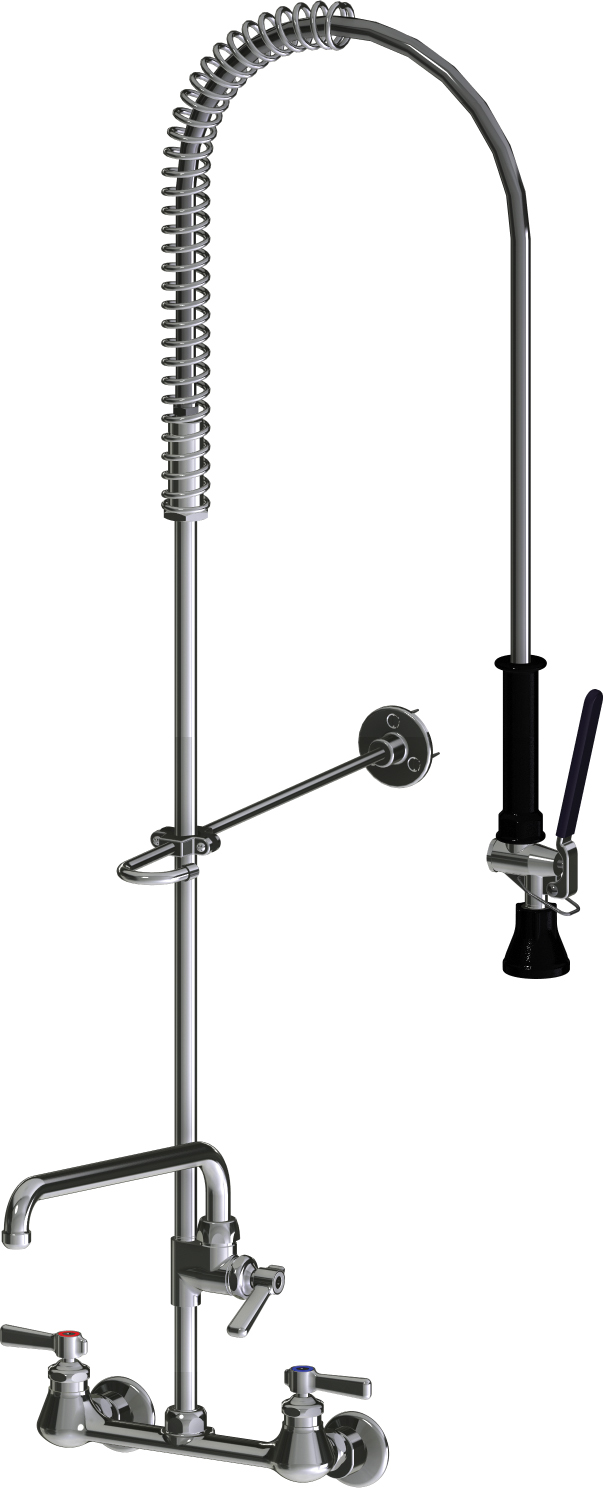

Pre-rinse fitting with 8" adjustable centers

Specifications

12" L-type swing spout (L12LEOJKAB)
Quixtop outlet with single screen design, full flow (female) (E1JKABRCF)
2-3/8" lever handle (369-PRJKCP)
2-3/8" lever handle (369-JKCP)
Ceramic 1/4-turn operating cartridge with integrated check valve, right-hand (1-099XKCJKABNF)
Ceramic 1/4-turn operating cartridge with integrated check valve, left-hand (1-100XKCJKABNF)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
3/8" offset inlet supply arm (GJKABCP)
Water conserving pre-rinse spray valve 1.0 GPM (90-LABCP)
Adapta-Faucet (613-AL12E1ABCP)
44" stainless steel hose and handle assembly (83-44ABNF)
2-5/16" diameter slip flange (1-055JKCP)
23" Standard pre-rinse riser (919-039JKABCP)
8" body, adjustable arms 7-1/4" - 8-3/4" centers
Handles include color-coded index
Polished chrome
Weight
13.795 lb
Package Dimensions
3.19 × 5.62 × 25 in

Availability

CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
  • Cartridge 5 Year

    5-Year Limited Cartridge Warranty

  • Faucet Life

    Lifetime Limited Faucet Warranty

  • Finish 1 Year

    1-Year Limited Finish Warranty

Codes / Standards
  • ASME A112.18.1/CSA B125.1

  • ASTM F2324
  • NSF/ANSI/CAN 61: Q ≤ 1

  • NSF/ANSI/CAN 372 Low Lead Content

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
