Installation Instructions
Literature

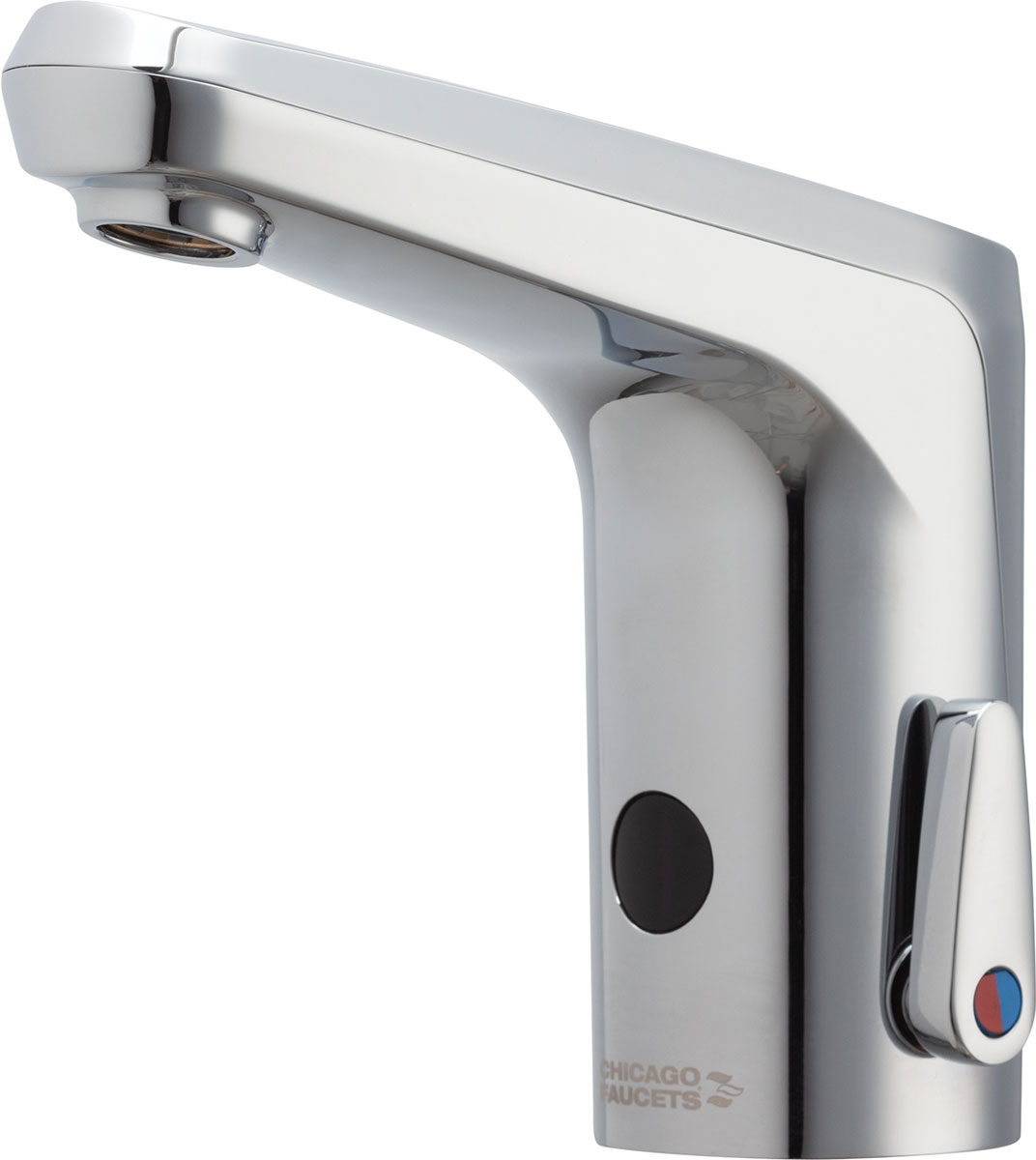

E-Tronic® 80 Series
Advanced electronic commercial faucet with touchless sensor operation
Description
Easy install, monitoring, and maintenance in a commercial sensor faucet
Replaced By
Specifications
Pressure compensating Econo-Flo™ non-aerating spray outlet 0.5 GPM (243.145.AB.1)
User adjustable temperature control mixer (included); pre-assembled with concealed internal temperature control mixer
Single hole
10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
Includes Long Term Power System (LTPS) - DC
Compatible with Commander™ Handheld Programming Unit; multiple field-adjustable modes and ranges
Dual supply with concealed internal mixer; flexible supply hoses included
Polished chrome
Weight
5.316 lb
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Electronics 3 Year
3-Year Limited Electronics and Solenoid Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
- Mechanical
5-Year Limited Mechanical Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
ADA ANSI/ICC A117.1
NSF/ANSI 372 Low Lead Content
-
NSF/ANSI/CAN 61: Q ≤ 1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
