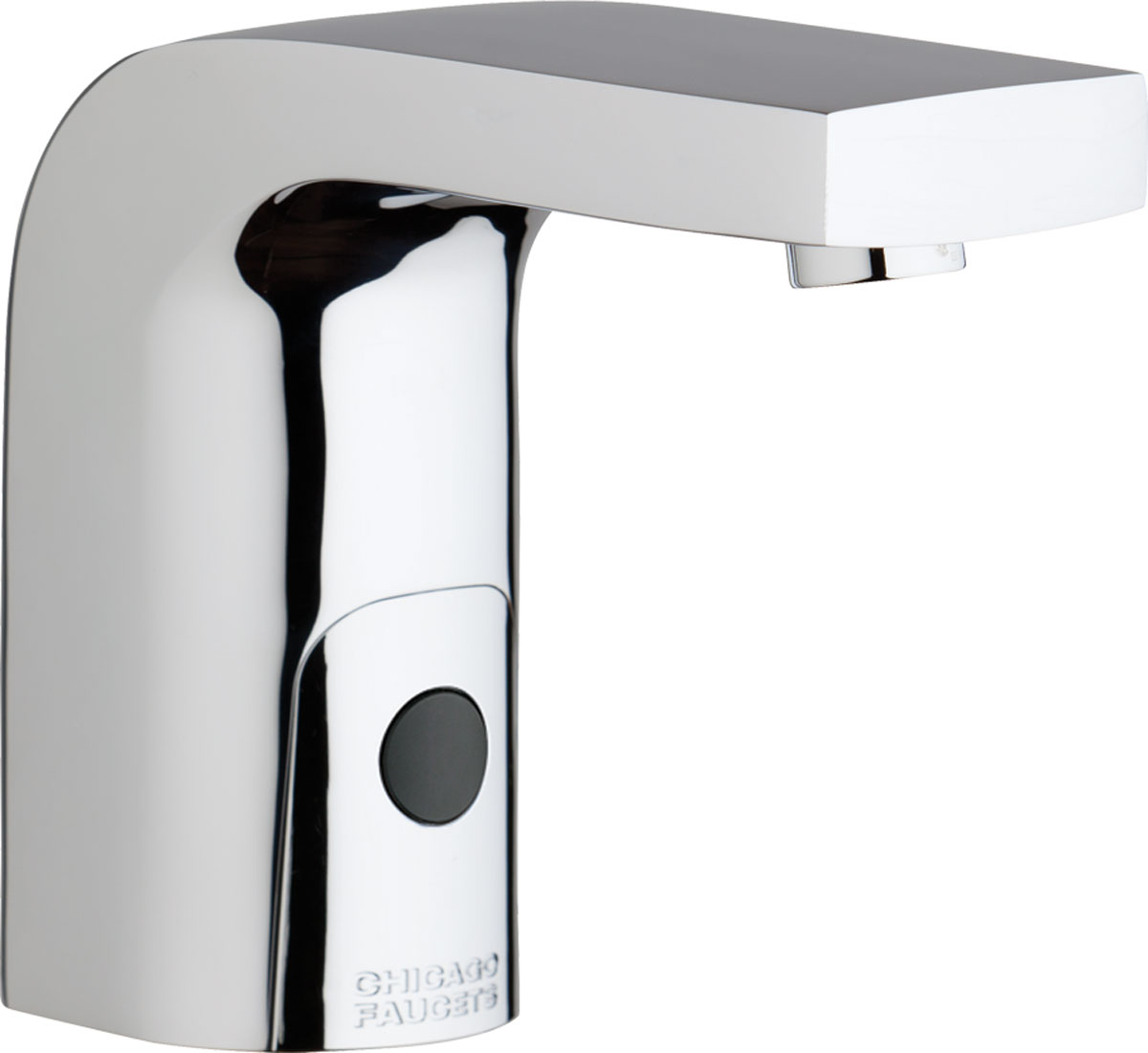

HyTronic® for Patient Care Series

Touch-free, programmable faucet for Patient Care applications

Replaced By

Specifications

HyTronic® Edge spout with 1.5 GPM flow control (242.756.AB.1)
Non-aerating laminar stream straightener outlet for HyTronic® Series (242.757.AB.1)
Flow control insert, 1.5 GPM (1020-006JKABNF)
HyTronic® module kit (standard mode) (242.433.00.1)
Concealed internal temperature control mixer
Single-hole (4" and 8" deck plates available, see Accessories)
40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds. Reactivate faucet by removing hands from the sensor for at least 10 seconds.
12 volt AC transformer required (order separately)
Compatible with Commander™ Handheld Programming Unit; multiple field-adjustable modes and ranges
Dual supply for hot and cold water; 3/8" O.D. copper supply tubes included
Polished chrome
Weight
5.9 lb

Availability

This item ships 5 business days from order acknowledgement
Warranty
  • Electronics 3 Year

    3-Year Limited Electronics and Solenoid Warranty

  • Faucet Life

    Lifetime Limited Faucet Warranty

  • Finish 1 Year

    1-Year Limited Finish Warranty

  • Mechanical

    5-Year Limited Mechanical Warranty

Codes / Standards
  • ADA ANSI/ICC A117.1

  • ASME A112.18.1/CSA B125.1

  • NSF/ANSI/CAN 372 Low Lead Content

  • NSF/ANSI/CAN 61: Q ≤ 1

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

  • Certified to WaterSense by ICC-ES
