List
Series

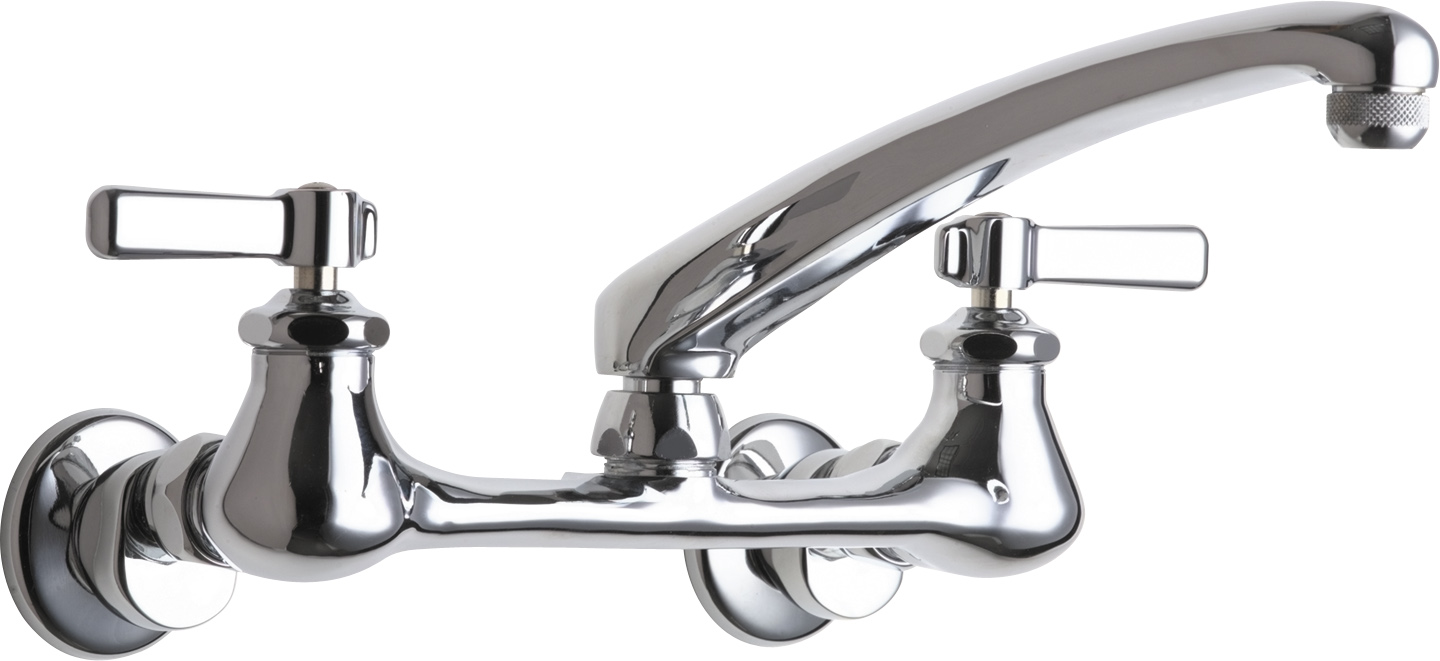

Wall-mounted manual sink faucet with adjustable centers

Part Number
540-LDL8E1CP

Discontinued
Replaced By

Specifications

8" L-type swing spout (L8JKCP)
Quixtop outlet with single screen design (E1JKRCF)
2-3/8" lever handle (369-PRJKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
8" body, adjustable arms 7-1/4" - 8-3/4" centers
2-5/16" diameter slip flange
Polished chrome
Need to modify this faucet to suit your needs?

Our faucet configurator tool lets you build a custom faucet from the ground up using components from across the Chicago Faucets line.

Warranty
  • Cartridge 5 Year

    5-Year Limited Cartridge Warranty

  • Faucet Life

    Lifetime Limited Faucet Warranty

  • Finish 1 Year

    1-Year Limited Finish Warranty

Codes / Standards
  • ADA ANSI/ICC A117.1

  • ASME A112.18.1/CSA B125.1

  • NSF/ANSI 61, Section 9

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
