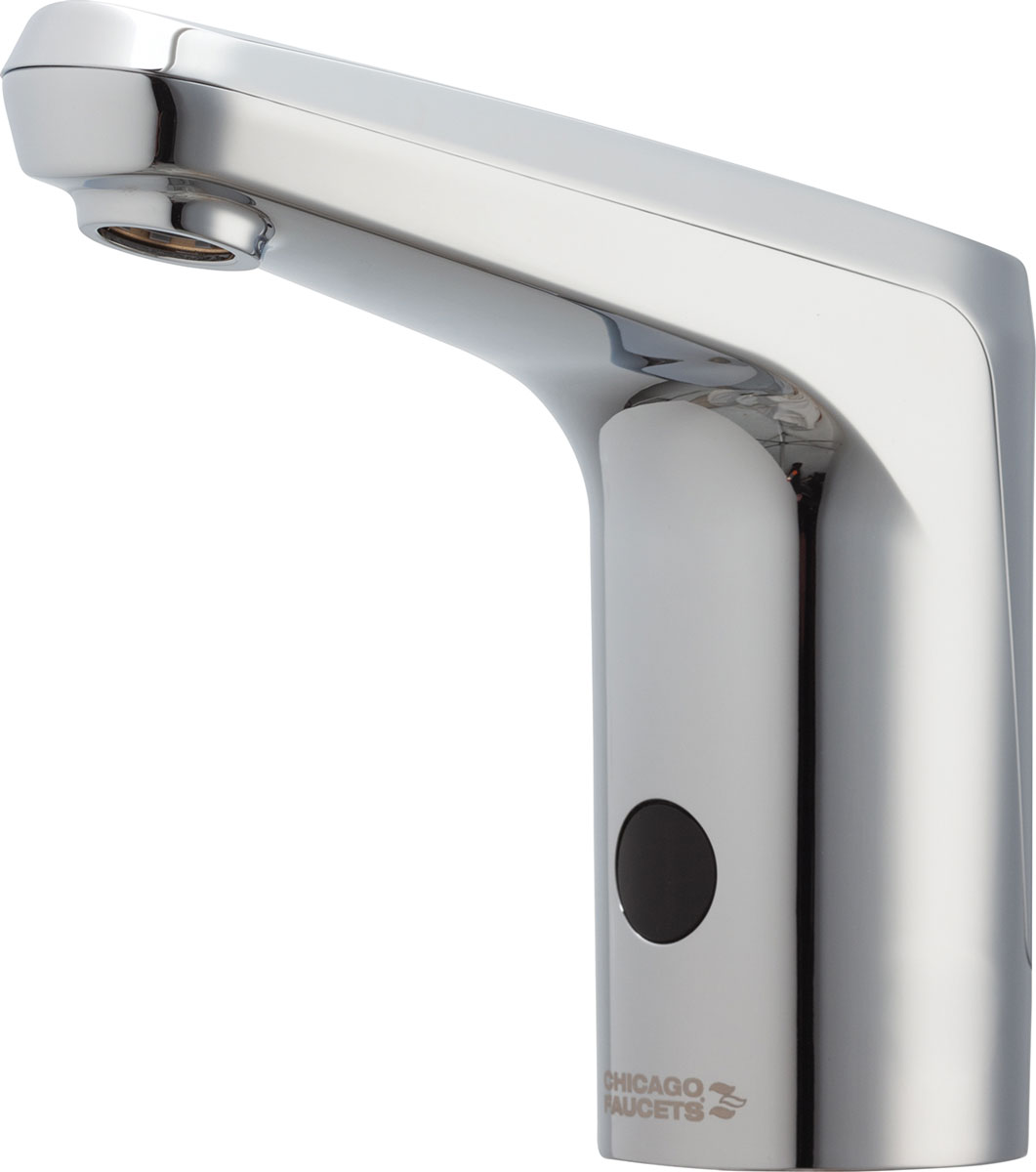

E-Tronic® 80 Series
Advanced electronic commercial faucet with touchless sensor operation
Easy install, monitoring, and maintenance in a commercial sensor faucet
Specifications
Pressure compensating Econo-Flo™ non-aerating spray outlet 0.5 GPM (243.145.AB.1)
Module for E-Tronic® 80 with Bluetooth® communication (244.458.00.1T)
Single-hole
10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
Includes 6-volt lithium CRP2 battery
Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
Internal Antenna Specifications: Peak Gain of the antenna: ─1.7dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC02
Single supply for tempered water; flexible supply hose included
Polished chrome
Weight
4.029 lb
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Electronics 3 Year
3-Year Limited Electronics and Solenoid Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
- Mechanical
5-Year Limited Mechanical Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
ADA ANSI/ICC A117.1
-
NSF/ANSI/CAN 61: Q ≤ 1
NSF/ANSI 372 Low Lead Content
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
