Installation Instructions
815 Series

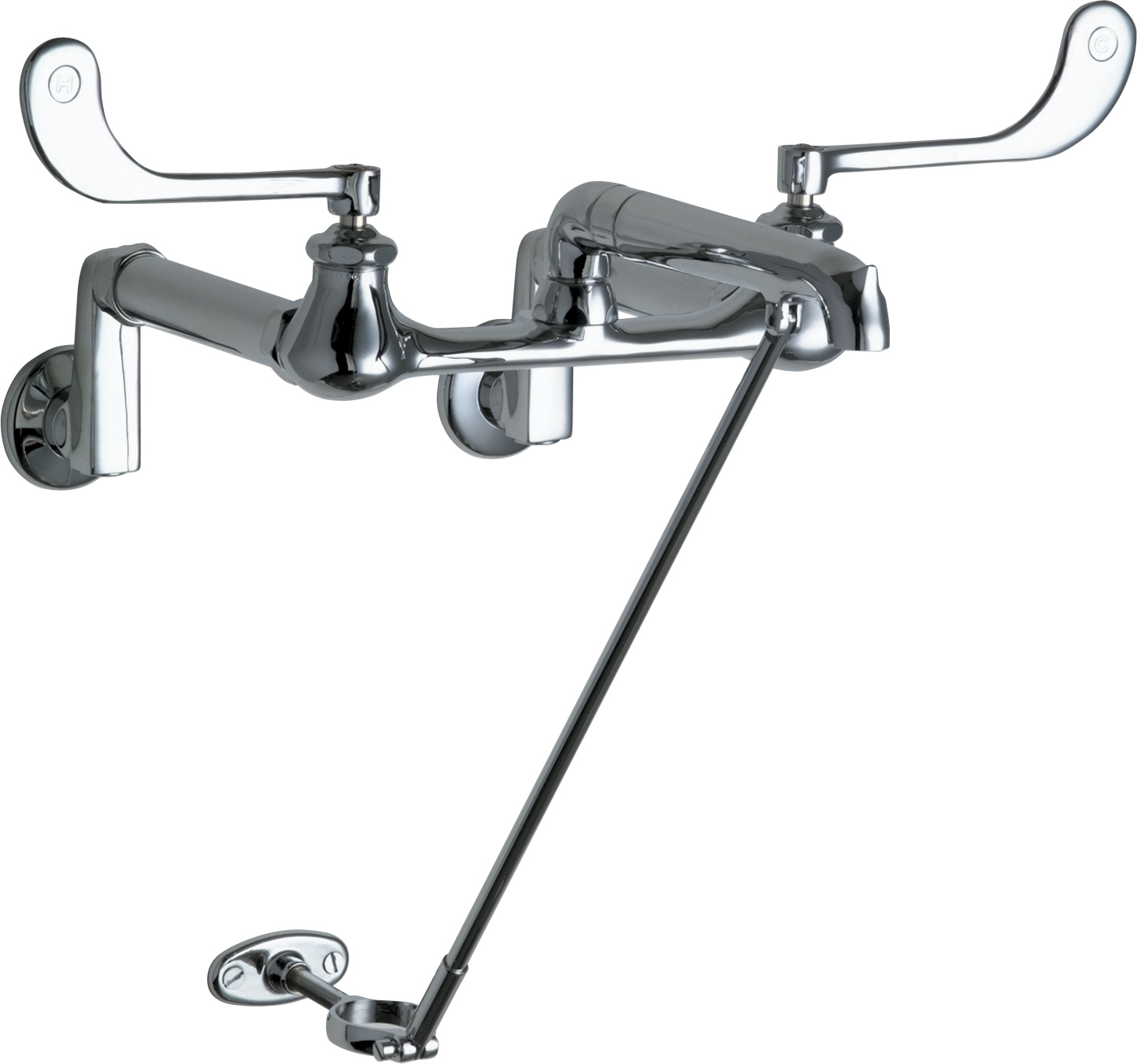

Wall-mounted manual faucet with adjustable centers
Specifications
7-1/8" rigid spout with pail hook and pipe support (815-SJKCP)
6" elbow blade handle (319-PRJKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
2-1/2" offset supply arm with integral shutoff stop (RJKABCP)
Straight 5" long supply inlet extension, installs between supply arm and faucet (EX5JKCP)
8" body, adjustable arms 3" - 13" centers
2-5/16" diameter slip flange
1/2" NPT female thread inlet
Polished chrome
Weight
10.188 lb
Package Dimensions
14 × 13 × 5.75 in
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
ADA ANSI/ICC A117.1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
