814 Series

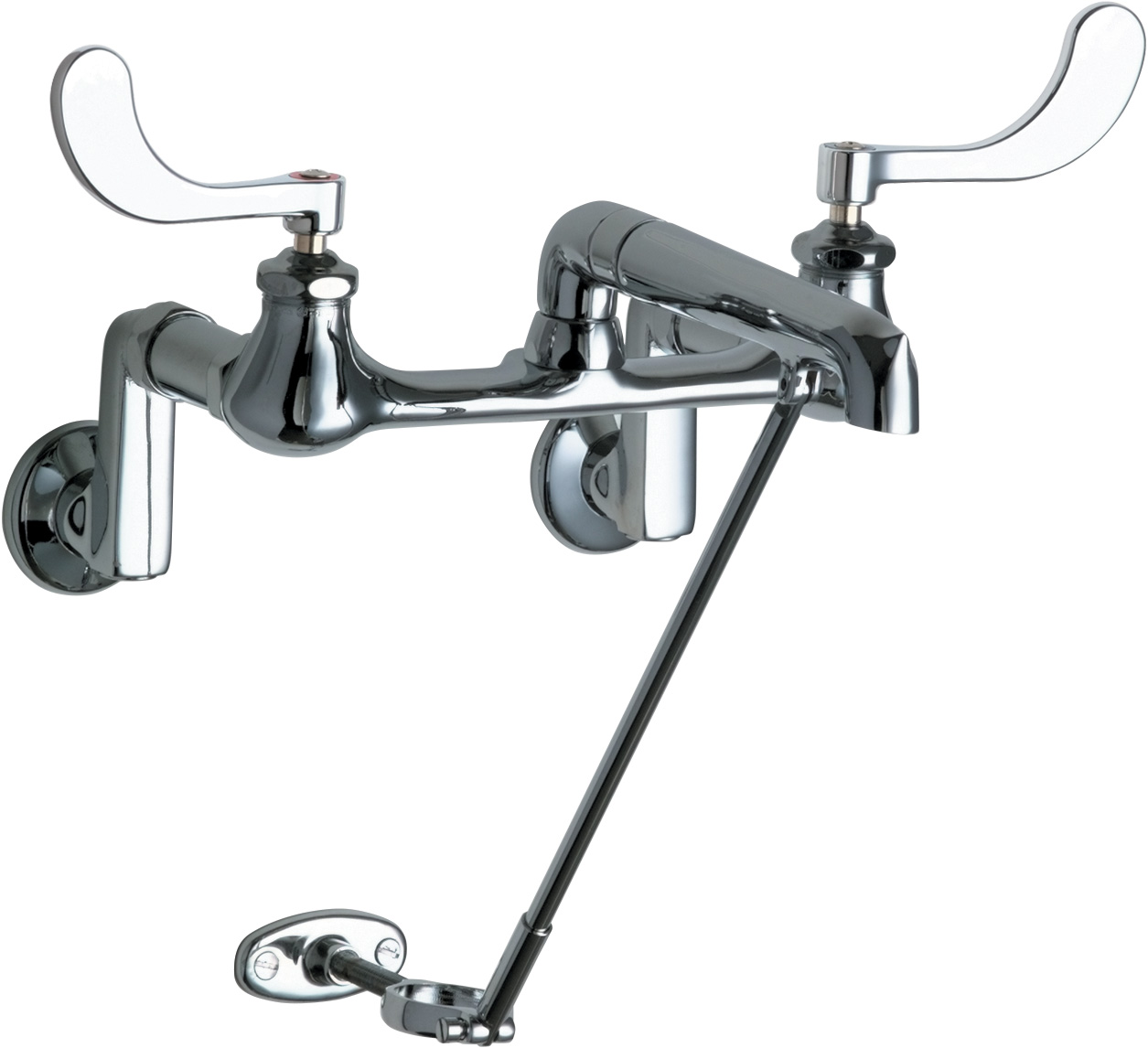

Wall-mounted manual sink faucet with adjustable centers
Select component options from the menus below to find your fitting
Reset
New Product Page
Specifications
7-1/8" rigid spout with pail hook and pipe support (814-SJKCP)
4" wristblade handle (317-PRJKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
2-1/2" offset supply arm with integral shutoff stop (RJKABCP)
Straight 2" short supply inlet extension, installs between supply arm and faucet (EX2JKCP)
8" body, adjustable arms 3" - 13" centers
Handle includes red, blue, and white index
1/2" NPT female thread inlet
Polished chrome
Weight
9.25 lb
Package Dimensions
13.5 × 6 × 4.25 in
Package Quantity
1
Availability
This item typically ships 5 business days from order acknowledgement
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
ADA ANSI/ICC A117.1
-
NSF/ANSI 61, Section 9
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
