Installation Instructions
797 Series

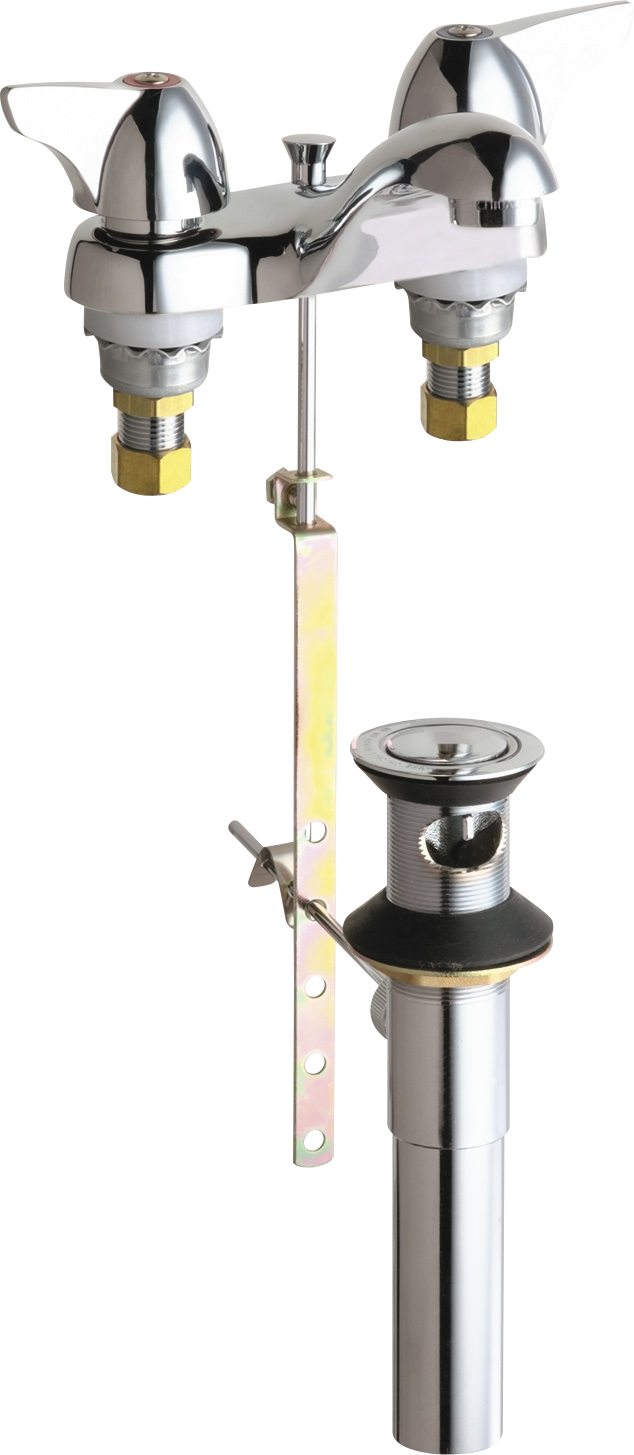

Deck-mounted manual faucet, 4" centers, with pop-up drain
Specifications
Pressure compensating Softflo aerator 2.2 GPM (E12JKABCP)
2" canopy single-wing handle (1000-PRJKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
4" fixed centers
Includes 2-1/8" diameter pop-up drain
1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
Polished chrome
Weight
6.6 lb
Package Dimensions
9 × 7 × 7 in
Package Quantity
1
Availability
This item ships 5 business days from order acknowledgement
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ASME A112.18.1/CSA B125.1
NSF/ANSI/CAN 372 Low Lead Content
-
NSF/ANSI/CAN 61: Q ≤ 1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
