Installation Instructions
772 Series

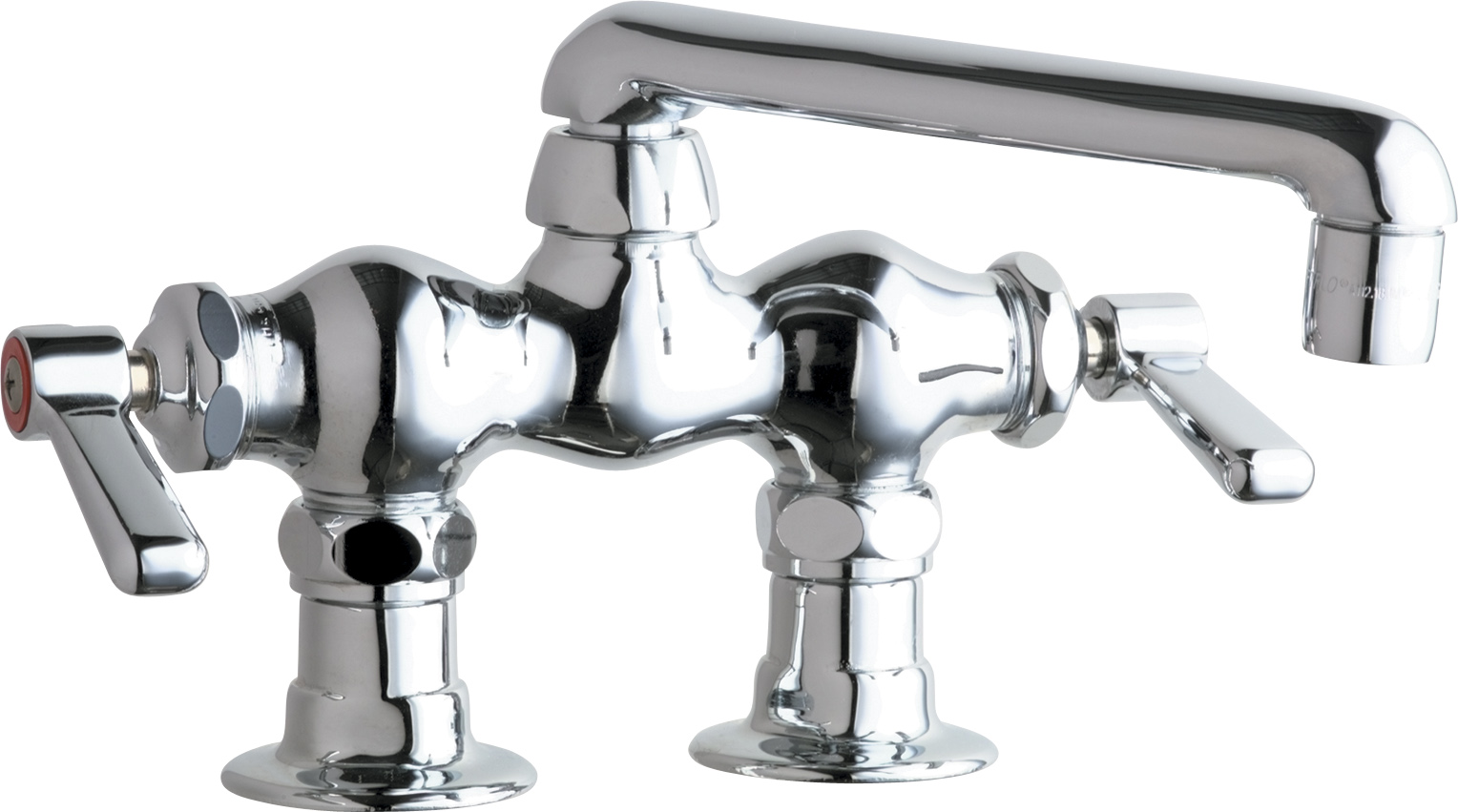

Deck-mounted manual faucet with 3-3/8" centers
Specifications
6" S-type swing spout (S6LEOJKAB)
Pressure compensating Softflo aerator, 2.2 GPM (E3JKABCP)
2-3/8" Lever handle (pair) (369-PRJKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
Straight 2" inlet supply arm with integral flange (WJKABCP)
3-3/8" fixed centers
Handles include color-coded index
Polished chrome
Weight
4.5 lb
Package Dimensions
8.25 × 6 × 5 in
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ASME A112.18.1/CSA B125.1
NOTE: Per the California Energy Commission (CEC), this fitting is not intended to be sold in California. See the CEC website for details.
NSF/ANSI/CAN 372 Low Lead Content
NSF/ANSI/CAN 61: Q ≤ 1
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
