Installation Instructions
686 Series

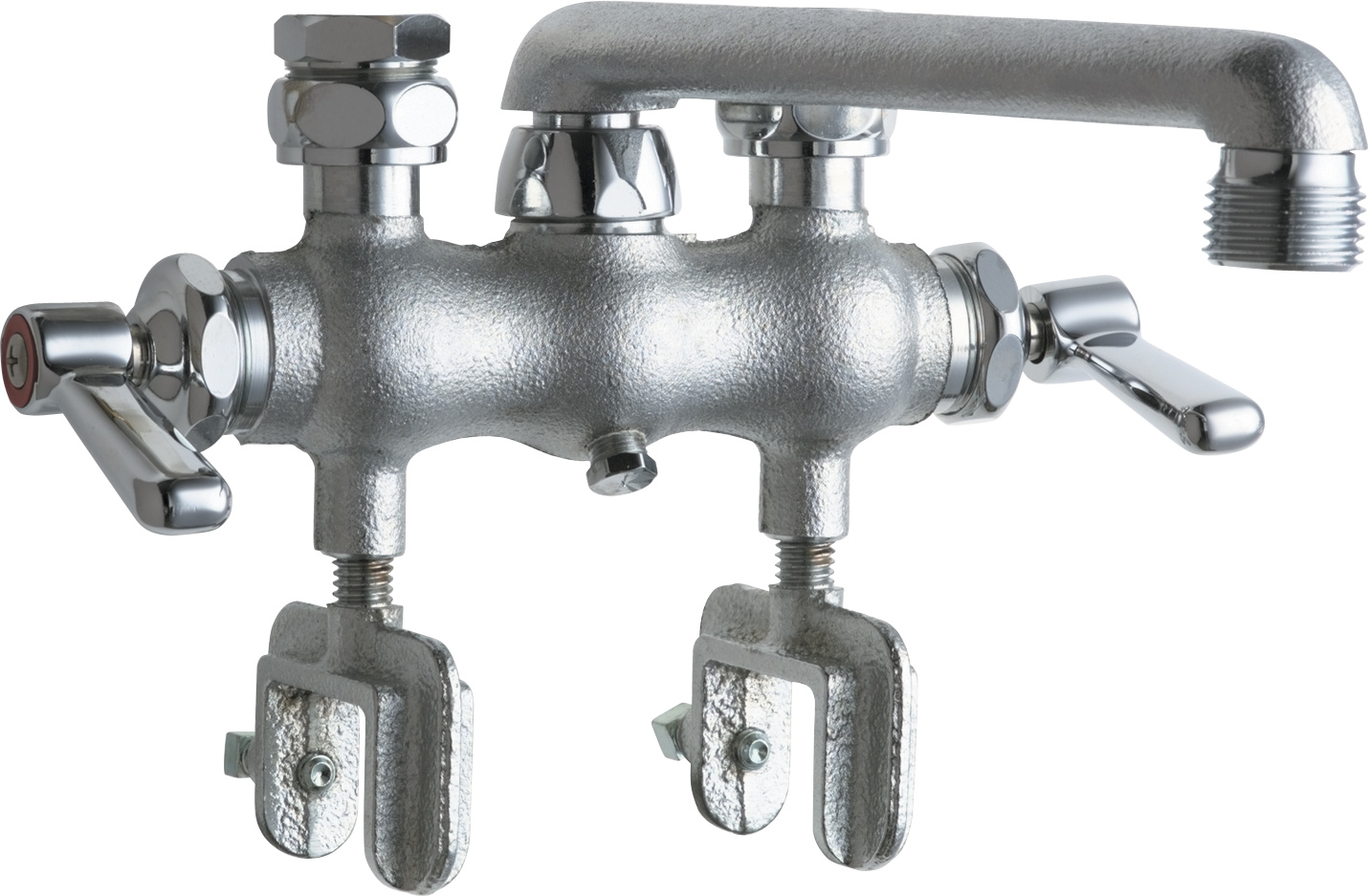

Manual laundry tray faucet with mounting clamps
Specifications
6" S-type swing spout (S6LEOJKAB)
3/4" hose thread male outlet, full flow (E2JKRCF)
2-3/8" lever handle (369-PRJKCP)
Quaturn™ compression operating cartridge, right-hand (1-099XTJKABNF)
Quaturn™ compression operating cartridge, left-hand (1-100XTJKABNF)
3-3/8" fixed centers
Handles include color-coded index
1/2" NPT female thread inlets from above
Rough Chrome
Weight
4.5 lb
Package Dimensions
10.38 × 4.5 × 3.75 in
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Cartridge 5 Year
5-Year Limited Cartridge Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ASME A112.18.1/CSA B125.1
-
NSF/ANSI/CAN 61, Section 9
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
