Do you need to add an eyewash station to your lab or workshop but just can’t find enough space? Or perhaps you work around hazardous materials and need an eyewash station that can be installed on an existing sink.

Meet the 8450 Series from Chicago Faucets, a full-service faucet and eyewash station that fits on a standard sink and takes up no more space than an ordinary faucet.

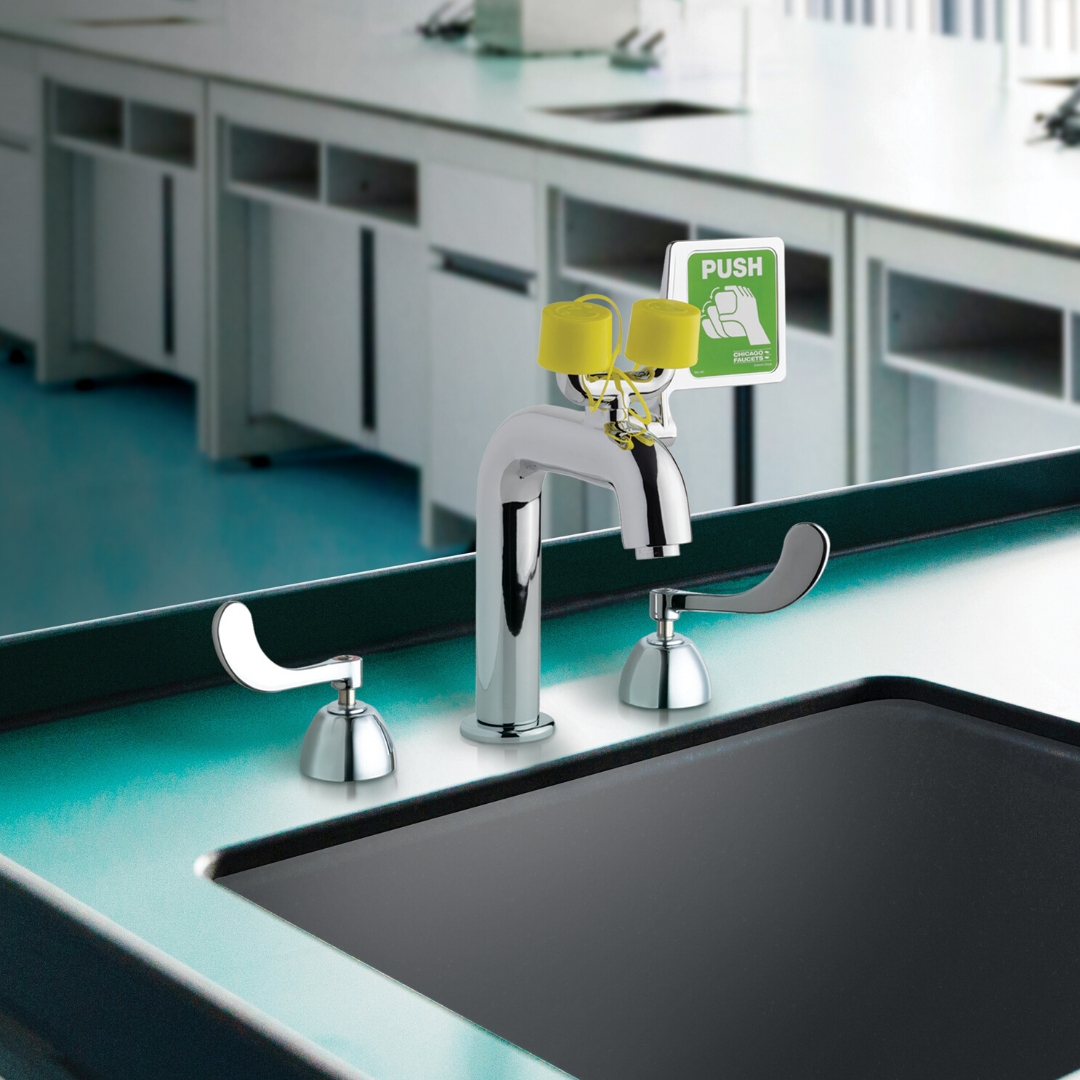

The Combination Emergency Eyewash and Gooseneck Faucet – Durable and Space-saving.

combination eyewash and faucet

Chicago Faucets has combined an independently operated eyewash with a durable, solid brass gooseneck spout. Now, you can provide convenient, on-demand protection for the people in your workspace without the need to install a separate eyewash fitting.

Features:

  • Dual aerated spray heads with flip top caps – Caps protect spray heads between uses and flip off automatically when activated. The 3.3 GPM at 50 PSI flow rate provides soft and wide streams for both eyes.

  • Durable and reliable construction – Durable brass construction, reliable ceramic cartridge operation, plus two independent waterways for the faucet and eyewash.

  • Standard water supply to faucet – Standard and separate supply installation to the gooseneck faucet, with available flow rates of 2.2 GPM aerated and 1.0 GPM laminar.

  • Separate water supply for eyewash – Independent supply line for eyewash allows connection to an ASSE 1071 thermostatic mixing valve to meet code and provide user safety.

  • Large push-handle for easy activation – Intuitive and widely used push handle design for easy-to-locate operation during any eye emergency.

  • Separate water supply for eyewash – Independent supply line for eyewash allows connection to an ASSE 1071 thermostatic mixing valve to meet code and provide user safety.

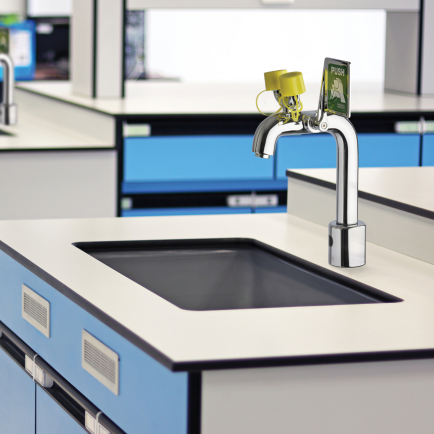

  • Retrofit to existing sink – For areas that need an eyewash station and already have a sink, the Chicago Faucets 8450 Series Eyewash Faucet can be retrofit to existing sinks for a quick and easy upgrade.



Download our Eyewash Station Codes & Standards eBook

Safety Requirements

Labs and hazardous materials sites are required by national and local codes to provide safety equipment such as eyewash stations. For example, ANSI/ISEA Z358.1-2014 American National Standard for Emergency Eyewash and Shower Equipment says, “manufacturing and processing facilities, construction sites, laboratories, medical and healthcare facilities, refineries, and other workplaces” must install and maintain emergency equipment.

OSHA’s 29 CFR 1910.151(c) puts it this way: “Where the eyes or body of any person may be exposed to injurious corrosive materials, suitable facilities for quick drenching or flushing of the eyes and body shall be provided within the work area for immediate emergency use.”

When you add the 8450 Series from Chicago Faucets to an existing sink, you can bring your facility into compliance with an easy install and practically no downtime. Plus, the 8450 Series meets these codes and standards:

  • ANSI/ISEA Z358.1

  • Certified to NSF/ANSI 372

  • ASME A112.18.1/CSA B125.1 Certified

  • Complies with ADA requirements as specified in the American with Disabilities Act.
