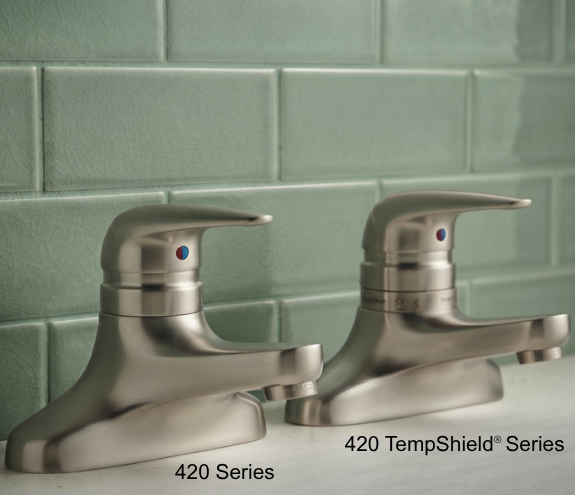

420 SERIES MANUAL FAUCETS WITH A BRUSHED NICKEL FINISH
CORE ADVANTAGES
Elevated Commercial Aesthetic:
Premium Brushed Nickel finish (ABBN) provides a warm, sophisticated alternative to traditional polished chrome to complement modern architectural interiors.
Integrated ASSE 1070 Scald Protection:
Select models feature point-of-use thermostatic mixing technology built directly into the faucet body, simplifying installation and eliminating below-deck clutter.
Built for High-Traffic Durability:
Heavy-duty cast brass ECAST® construction (under 0.25% weighted lead content) paired with long-lasting ceramic operating cartridges.
Water & Energy Efficiency:
Ranging from standard 1.5 GPM pressure-compensating laminar outlets to 0.5 GPM Econo-Flo™ vandal-proof sprays for LEED and CALGreen compliance.
CFNow! Fast Shipping:
Standard catalog configurations ship in just 3 days to keep construction schedules and retrofits on track.
ENGINEERED FOR EASE OF INSTALL & RELIABILITY
Streamlined Below-Deck Footprint
By housing ASSE 1070 certified thermostatic technology inside the faucet body, integrated TMV models eliminate the need for separate below-deck valves. This reduces labor hours during installation, minimizes below-deck plumbing connections to lower risk of leaks, and simplifies routine maintenance in tight spaces.
Ergonomic & Vandal-Resistant Control
All models come standard with vandal-resistant 4-1/4" metal lever handles and ceramic mixing cartridges engineered for smooth volume and temperature control while meeting ADA ANSI/ICC A117.1 accessibility standards.
Public Sector & Code Compliant
Fully compliant with the Buy American Act (BAA) of 1933 and
certified to ASME A112.18.1/CSA B125.1 and NSF/ANSI 372 Low Lead Content requirements.

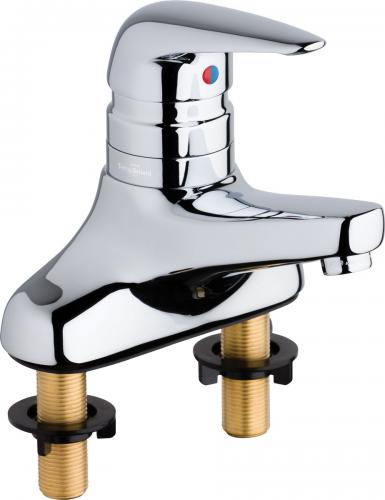

MODEL CONFIGURATIONS & SPECIFICATIONS
| Model # | Flow Rate & Outlet Type | Integrated ASSE 1070 TMV | Ideal Commercial Application |
|---|---|---|---|
| 420-ABBN | 1.5 GPM Pressure-Compensating Laminar | No (For use with external/below-deck TMV) | Commercial Offices, Hospitality, & Public Facilities |
| 420-E2805ABBN | 0.5 GPM Vandal-Proof Econo-Flo™ Spray | No (For use with external/below-deck TMV) | Water-Conscious Restrooms & CALGreen Projects |
| 420-T41ABBN | 1.5 GPM Pressure-Compensating Laminar | Yes (105°F Max Output Setpoint) | Schools, Universities, & Public Buildings |
| 420-T41E2805ABBN | 0.5 GPM Vandal-Proof Econo-Flo™ Spray | Yes (105°F Max Output Setpoint) | Senior Living Facilities & High-Safety Restrooms |
| 420-T45E2805ABBN | 0.5 GPM Vandal-Proof Econo-Flo™ Spray | Yes (113°F Max Output Setpoint) | Specialized Healthcare & High-Temp Applications |
