HyTronic® Series
Touch-free, programmable faucet with above-deck electronics
Specifications

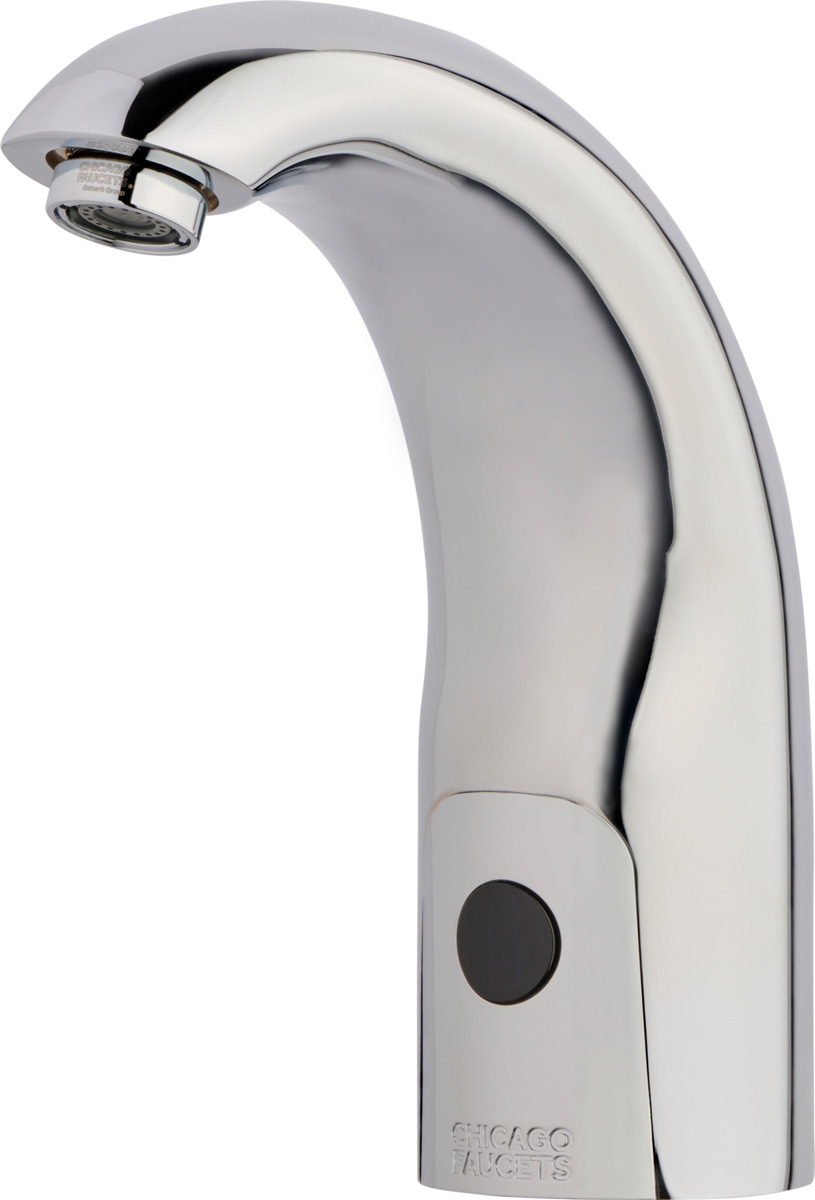

HyTronic® Contemporary spout (240.729.AB.1)
Pressure compensating Econo-Flo™ non-aerating outlet, 0.35 GPM (E39VPJKABCP)
HyTronic® module kit with Bluetooth® communication (242.433.00.1T)
Concealed internal temperature control mixer
Includes optional 1.5 GPM (5.7 L/min) laminar flow insert
Single-hole (4" and 8" deck plates available, see Accessories)
Internal Antenna Specifications: Peak Gain of the antenna: ─5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
12 volt AC transformer required (order separately)
Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
Dual supply for hot and cold water; flexible supply hoses included
Polished chrome
Weight
5.522 lb
Package Quantity
1
Availability
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Eligible to ship same day if order received by 12:00 pm CST (customer pays freight)
Warranty
- Electronics 3 Year
3-Year Limited Electronics and Solenoid Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
- Mechanical
5-Year Limited Mechanical Warranty
Codes / Standards
ASME A112.18.1/CSA B125.1
ADA ANSI/ICC A117.1
Complies with CALGreen requirements
NSF/ANSI/CAN 372 Low Lead Content
-
NSF/ANSI/CAN 61: Q ≤ 1
