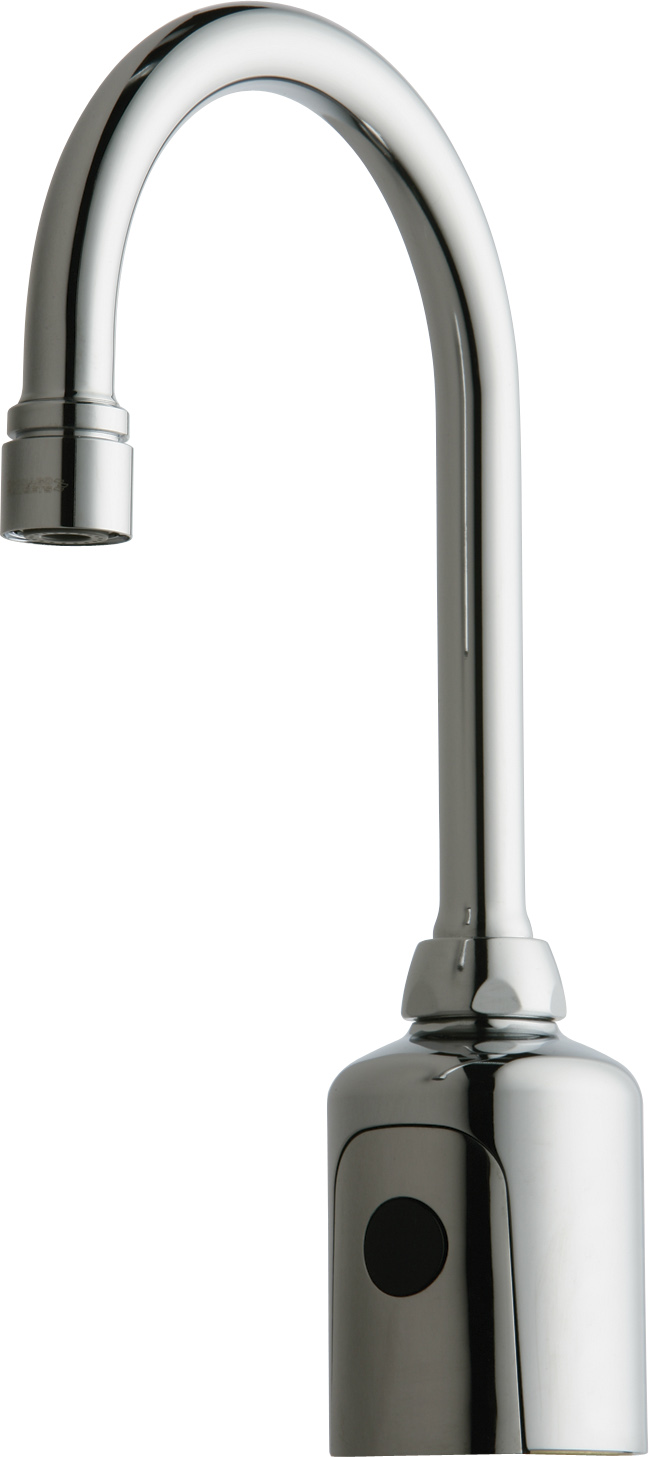

HyTronic® for Patient Care Series

Touch-free, programmable faucet with above-deck electronics, designed specifically for Patient Care applications

Specifications

5-1/4" rigid/swing gooseneck spout (GN2AH8JKABCP)
Pressure compensating Softflo aerator 2.2 GPM (E3VPJKABCP)
HyTronic® module kit with Bluetooth® communication (242.433.00.1T)
Long life battery conversion kit with green adapter and mounting hardware (243.868.00.1)
2.2 GPM (8.3 L/min) vandal resistant aerated outlet
Single-hole (4" and 8" deck plates available, see Accessories)
Internal Antenna Specifications: Peak Gain of the antenna: ─5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds. Reactivate faucet by removing hands from the sensor for at least 10 seconds.
Long Term Power System (LTPS) provides maintenance-free power for 15 years or more, depending on usage
Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
Single supply for tempered water; 3/8" O.D. copper supply tube included
Polished chrome
Weight
4.313 lb
Package Dimensions
13.25 × 13.25 × 3.75 in

Availability

This item ships 5 business days from order acknowledgement
Warranty
  • Electronics 3 Year

    3-Year Limited Electronics and Solenoid Warranty

  • Faucet Life

    Lifetime Limited Faucet Warranty

  • Finish 1 Year

    1-Year Limited Finish Warranty

  • Mechanical

    5-Year Limited Mechanical Warranty

Codes / Standards
  • ASME A112.18.1/CSA B125.1

  • ADA ANSI/ICC A117.1

  • NSF/ANSI/CAN 61: Q ≤ 1

  • NSF/ANSI/CAN 372 Low Lead Content

  • WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
